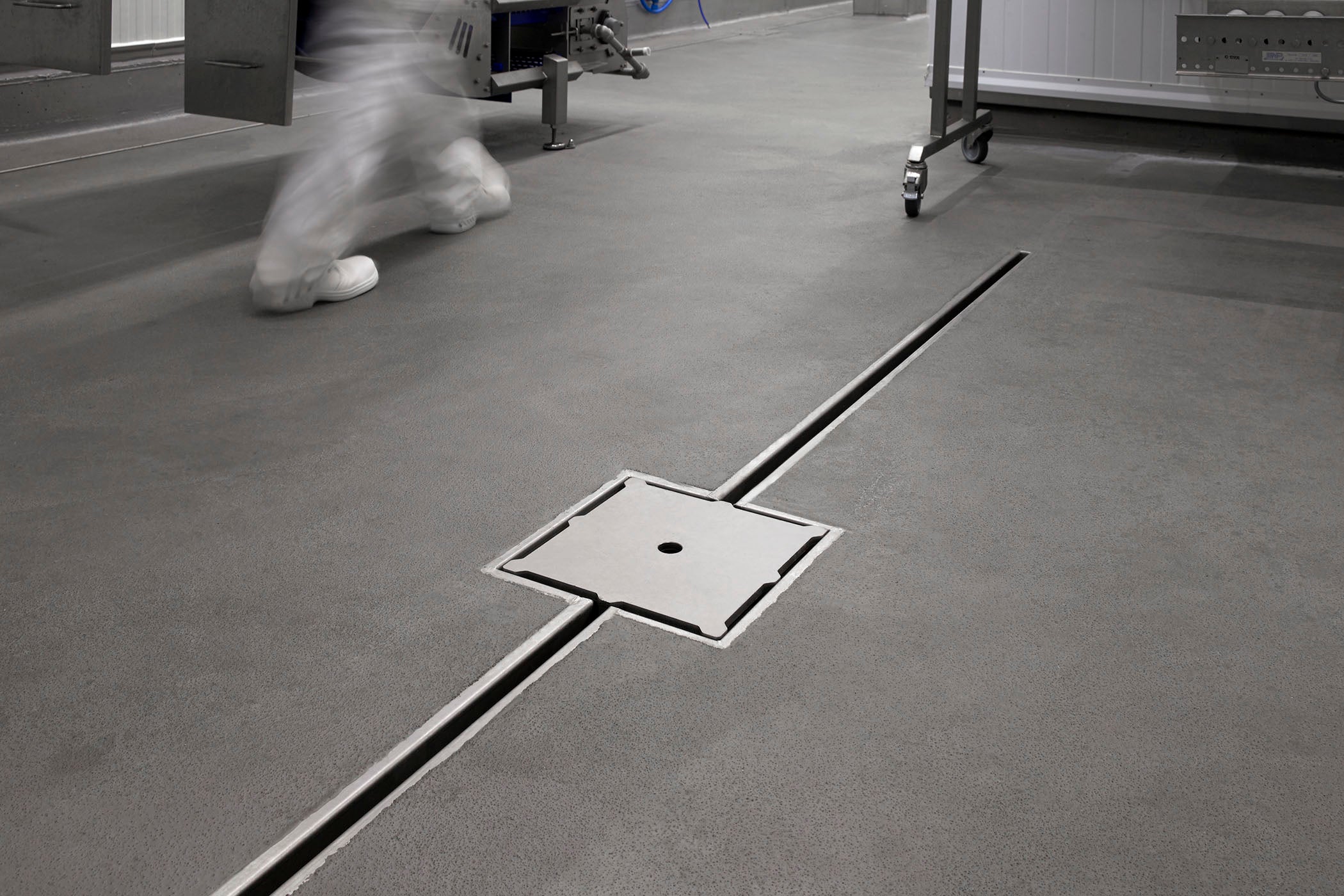

Slotted Floor Drain Channel, 50 mm wide FURO 163

Slotted Floor Drain Channel, 50 mm wide FURO 163

Bredd 50 mm. För livsmedelsindustri m.m. med både lättare och tyngre belastningar.
  • Kan byggas till valfri längd med täthetstestade flänsförband. Bredd 50 mm.
  • Modullängd max 2950 mm.
  • Kvalitet rostfritt EN 1.4301 (SS 2333) alt. syrafast rostfritt EN 1.4404 (SS 2348).
  • För ingjutning i betonggolv.
  • Överdelar för klinkergolv, massagolv samt stålslipat betonggolv som är vridbara 360°, vinkelställbara och teleskopiska.
  • Rännans botten är V-formad för att underlätta självrensning.
  • Golvrännan har utloppsdel med urtagbart vattenlås med handtag.
  • EPDM-gummitätningar enligt EN 681-1 typ Wc.
  • Installationstillbehör som ingår: Levereras täckt för att hindra betong från att rinna ner i rännan under gjutning. Rejäla fästöron för förankring i bjälklaget. Dessa ger möjlighet till enkel höjdjustering ovanifrån. Vid massagolv ingår ursparingslister på vidhäftningsflänsar.

  • Plastic mounting rods are only suitable for load class L15, while threaded metal mounting legs are compatible with both L15 and M125.

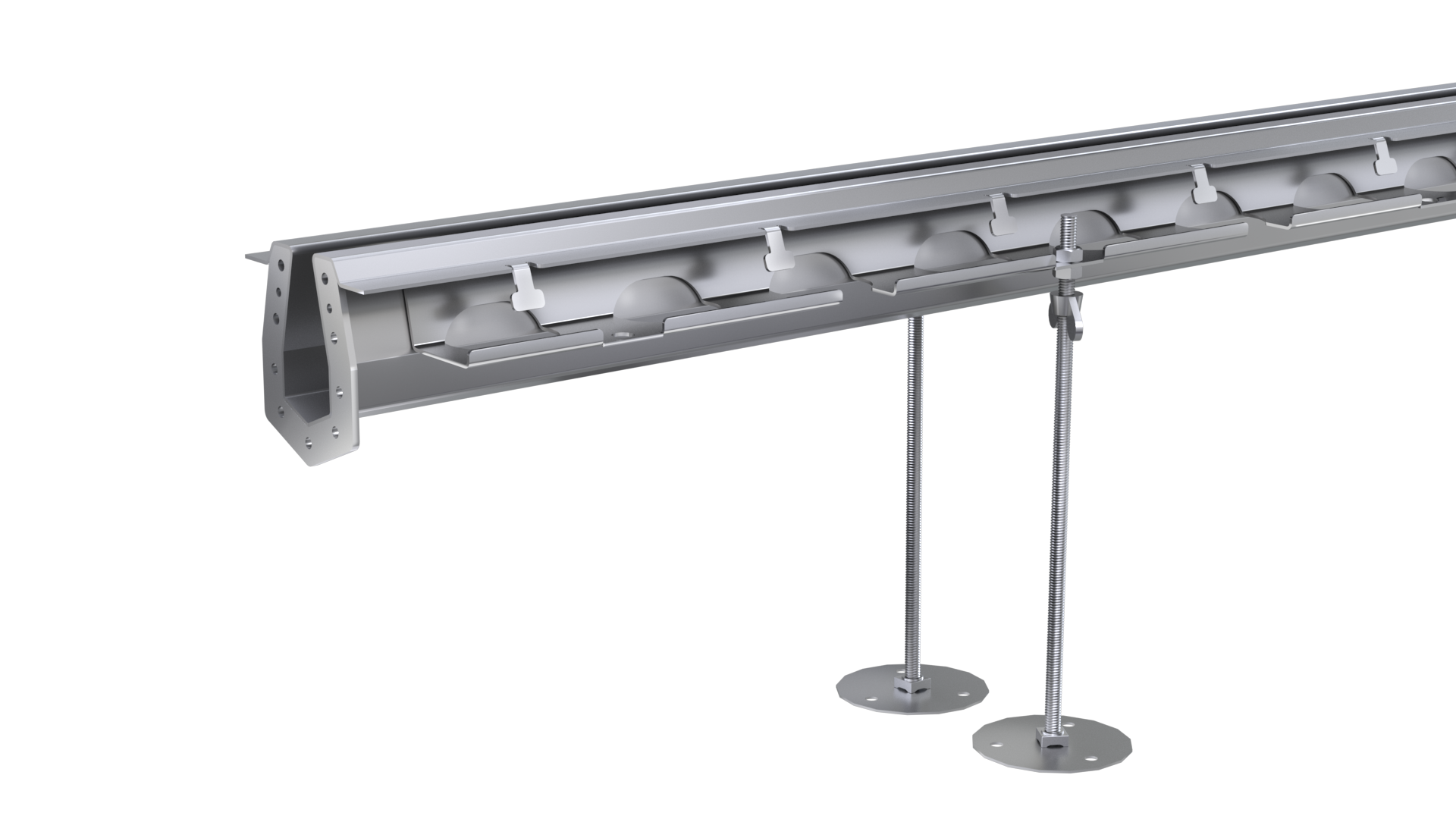

  • For load class M125, the channels are externally reinforced with longitudinal profiles that provide secure anchoring in the concrete, make the top edge durable for forklift traffic, and serve as attachment points for metal adjustable legs. See environmental image.

  • L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.
  • M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.

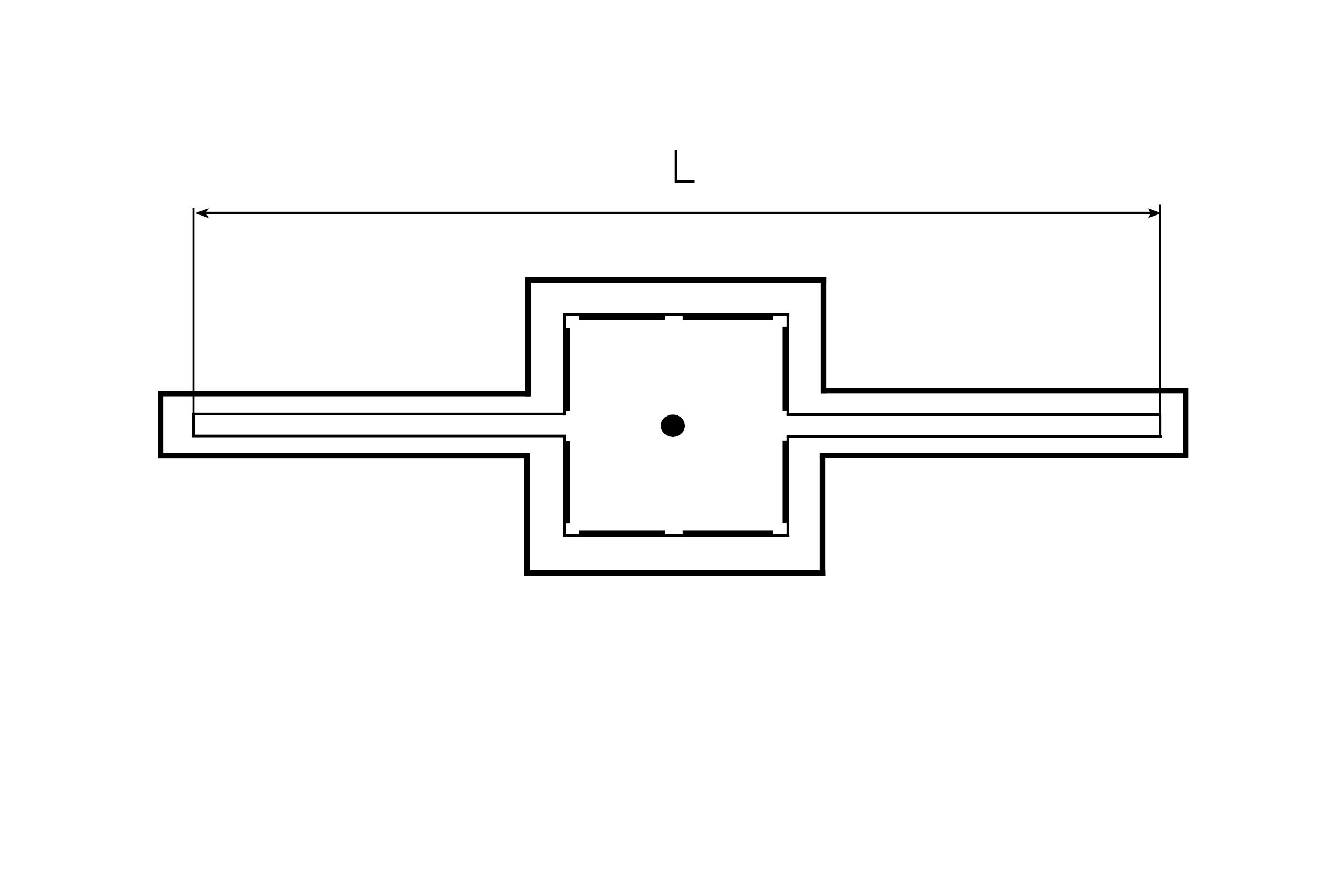

Variants

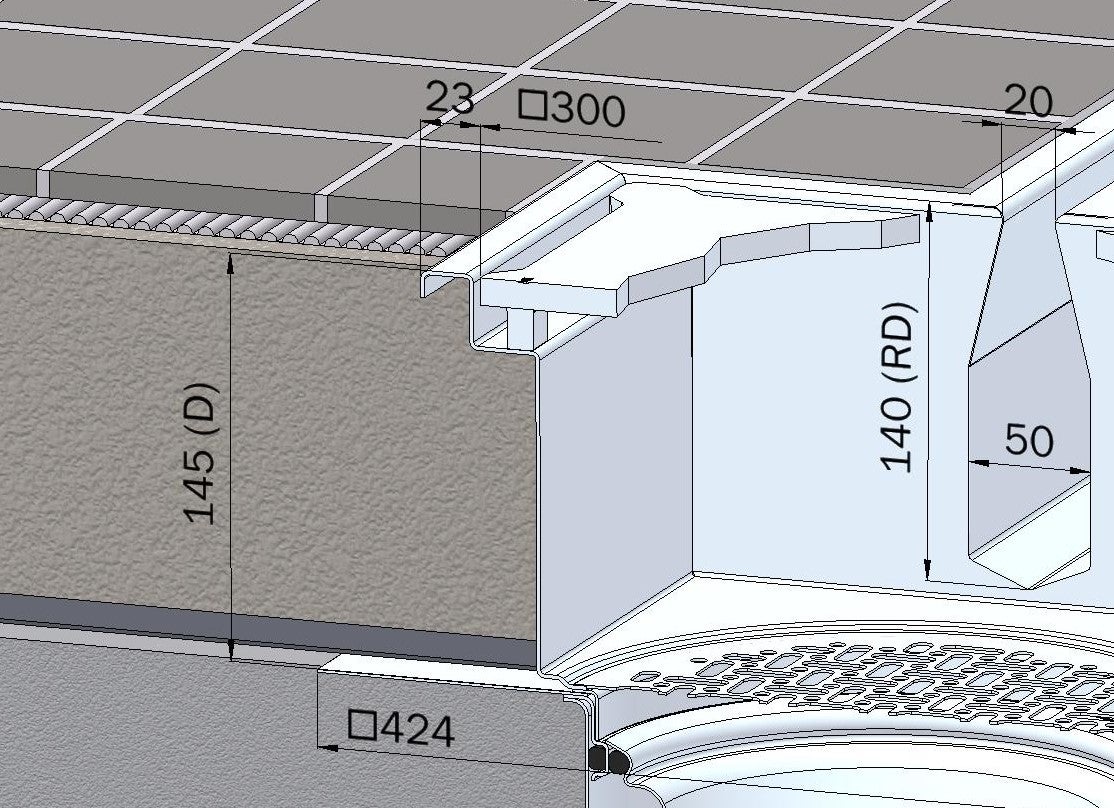

Clinker floor K1

Clinker floor K1

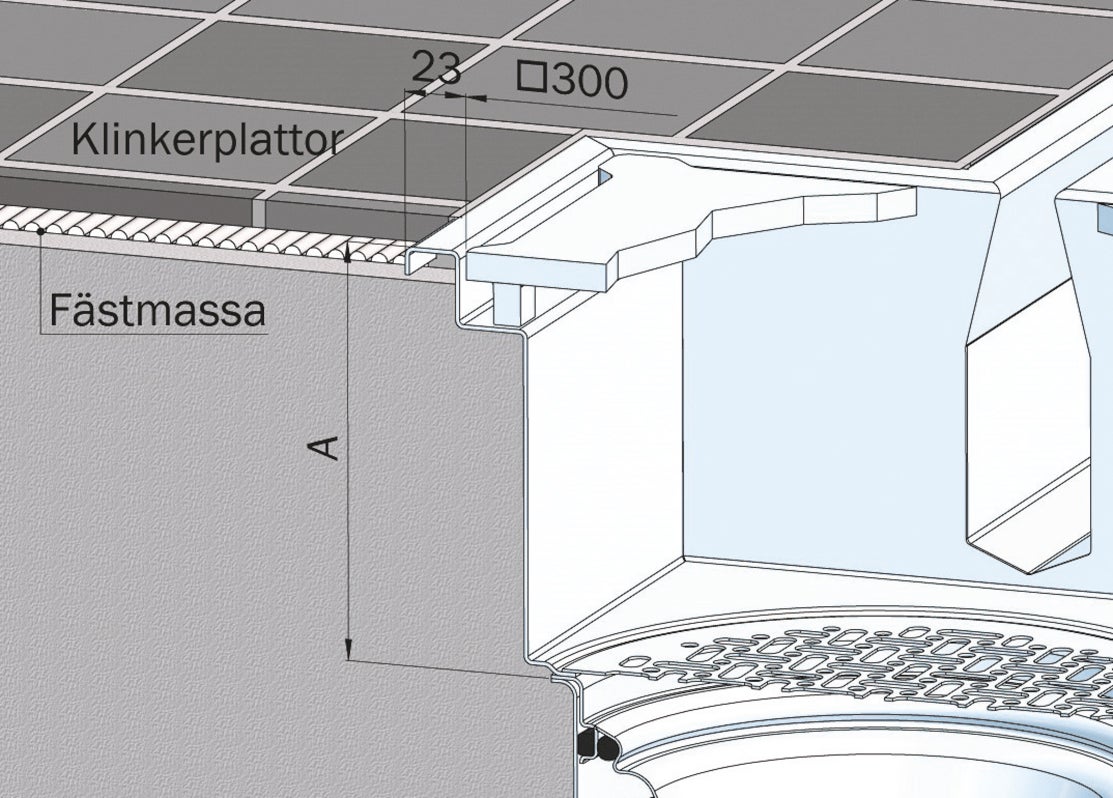

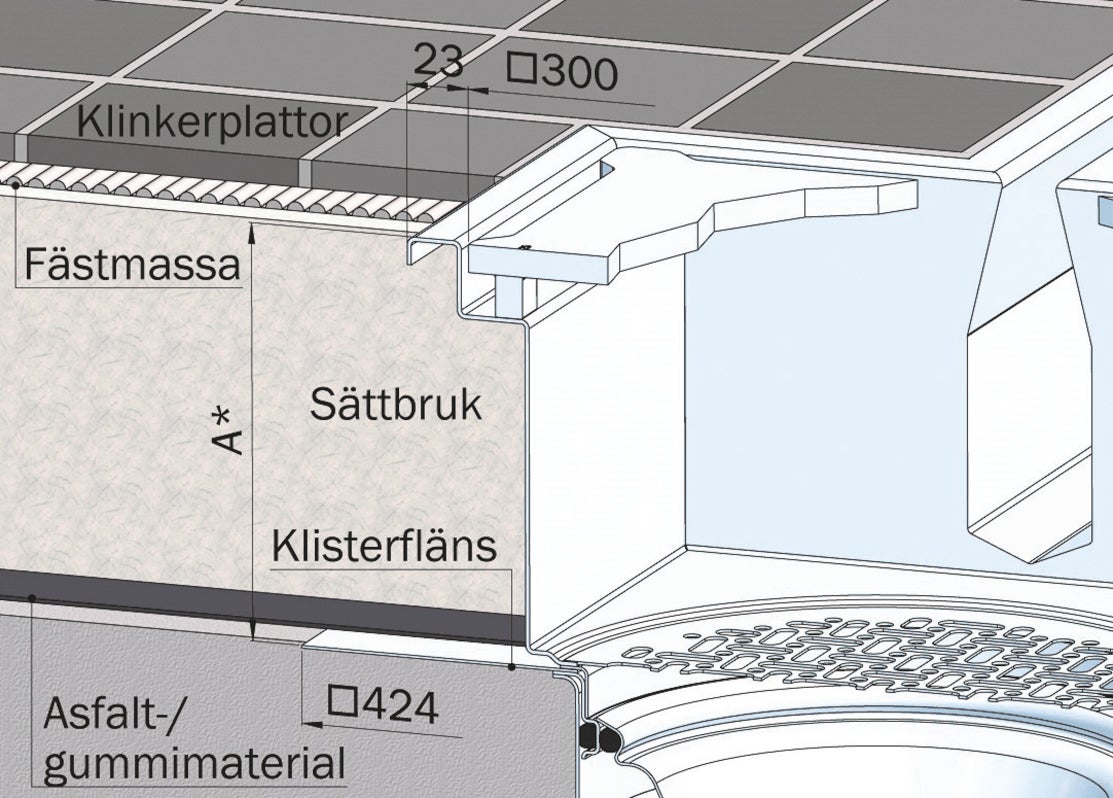

Floor material: Clinker in adhesives
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange

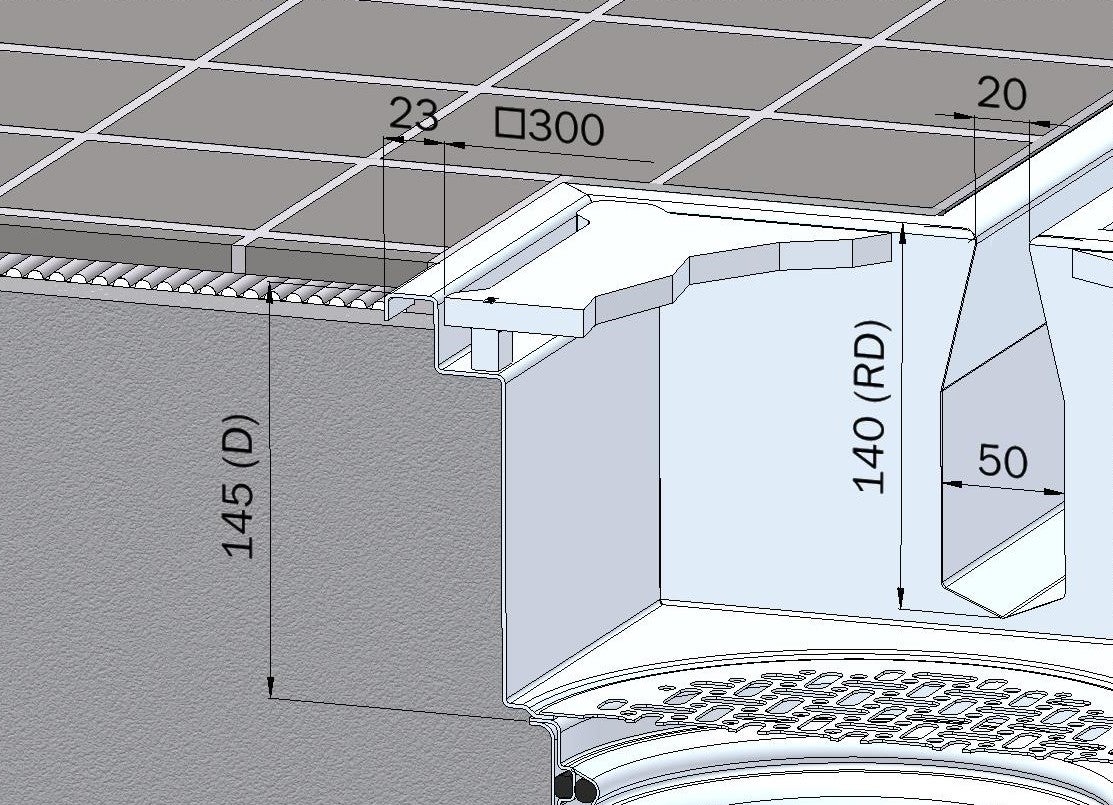

Clinker floor K3

Clinker floor K3

Floor material: Clinker in adhesives
Water proofing: Floor without waterproofing
Water proofing drain flange: None
Resin flooring

Resin flooring

Floor material: Resin flooring (not Polyurethane cement)
Water proofing: Compound floor

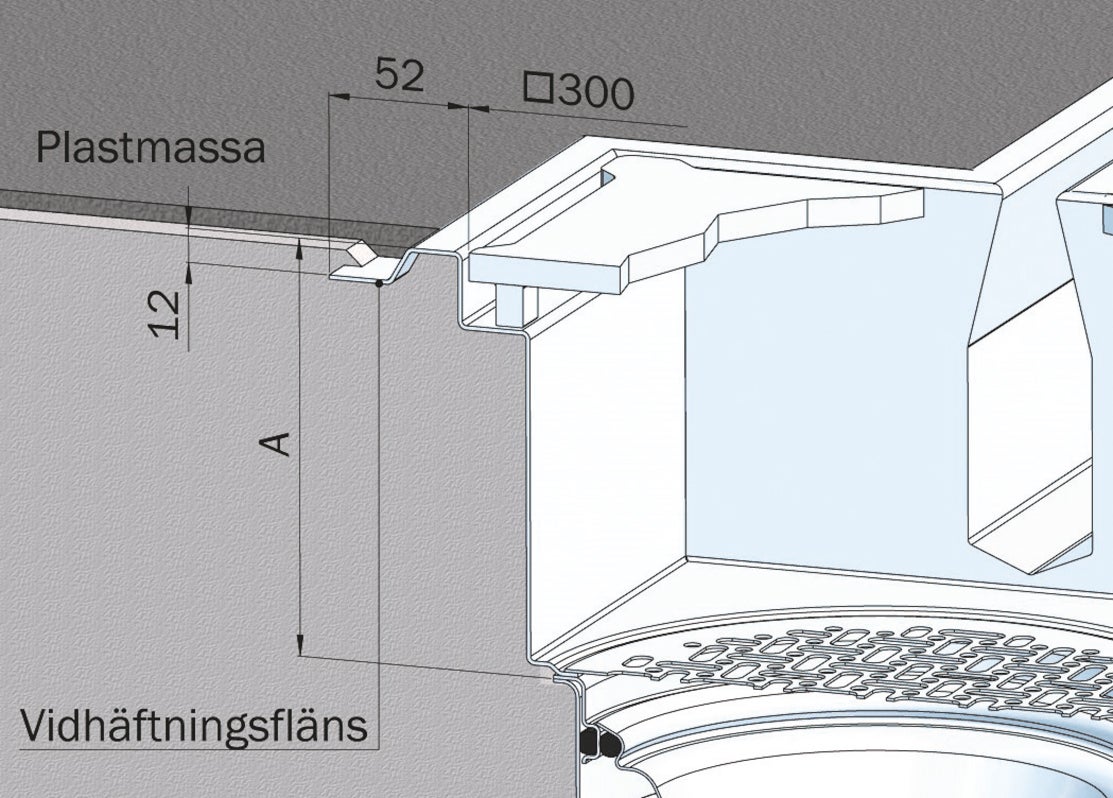

Water proofing drain flange: Recess for resin floor

Dimensions for FURO 163 floor channel

Byggmått_ränna_med grop_SM_1.jpg

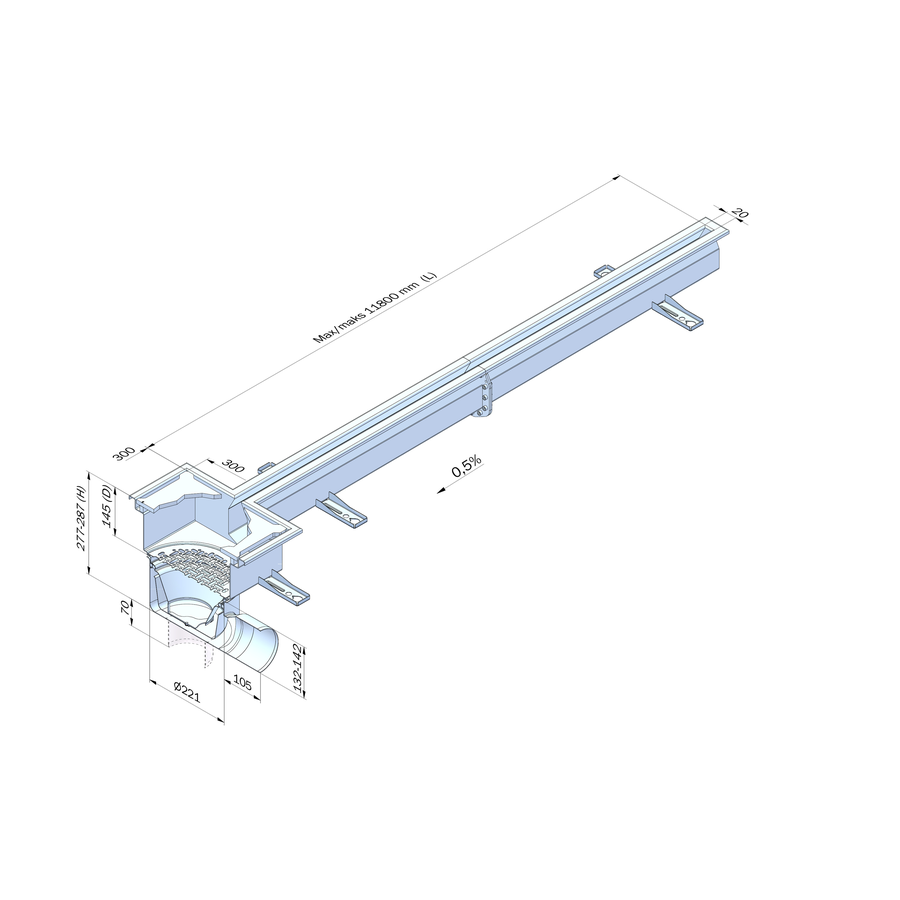

Construction dimensions for FURO 163 floor channel:



S1: 345 mm

F1: 285 mm

S2: 555 mm

F2: 495 mm

Floor drains and channels always have a connecting pipe and its invert level/ V.g. to take into account. The invert level is always measured at the bottom line of the pipe. To simplify product selection, we specify the total height (H) of our floor drains and channels. The total height is the distance from the finished floor surface down to where the water leaves the product. For a bottom outlet, the measuring point is where the outlet spigot begins. The total height (H) always consists of the top section depth (D) plus the outlet section of the product.

Dimensions for all floor types FURO 163:

  • Total height (H) is 277-287 mm

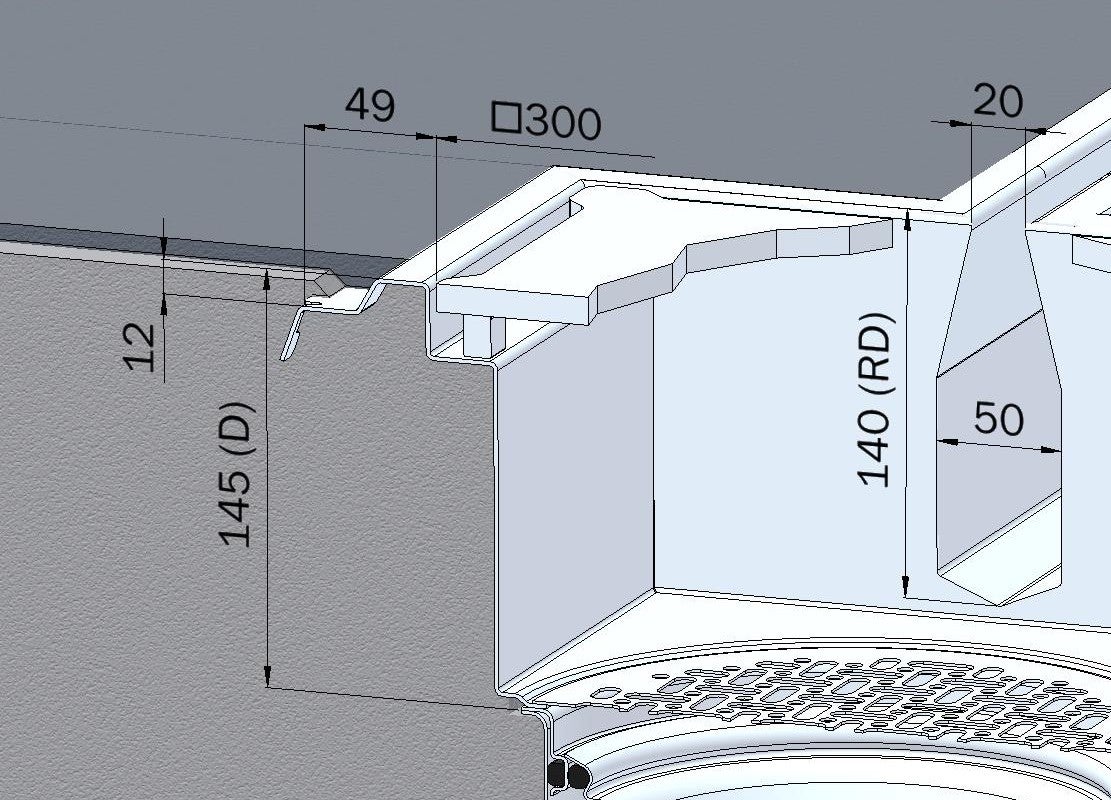

  • Top section depth (D) is 145 mm and the channel is 140 mm (RD) at its deepest point.


Fall towards outlet: 0.5%

S 75

Side outlet Ø75 mm

Capacity 4,8 l/s

S 110

Side outlet Ø110 mm

Capacity 4,8 l/s


B 75

Bottom outlet Ø75 mm

Capacity 4,8 l/s

B 110

Bottom outlet Ø110 mm

Capacity 6 l/s


Trap

Trap

Part no. 220VH12

Trap with mechanical odor stop

Trap with mechanical odor stop

Part no. 220VL12

Water trap, odor and backflow stop

Water trap, odor and backflow stop

Water trap with mechanical odor and backflow stop.

Part no. 220VLB12

Trap with shut-off function

Trap with shut-off function

Part no. 220VA2

Strainer basket, 1,2 liters

Strainer basket, 1,2 liters

  • Volume: 1.2 l
  • Capacity: 4.0 l/s

Part no. 220SK32

Strainer basket, 2.7 liters

Strainer basket, 2.7 liters

The strainer basket is suitable for drains without a trap and drains with an extension part.

  • Volume: 2.7 l
  • Capacity: 4.0 l/s

Part no. 220SK41

Sand trap, 0.9 liters

Sand trap, 0.9 liters

  • Volume: 0.9 l
  • Capacity: 1.5 l/s

Part no. 220SF61

Sand trap, 1.5 liters

Sand trap, 1.5 liters

The sand trap fits in drains with an extension part or without trap.

  • Volume: 1.5 l
  • Capacity: 1.5 l/s

Part no. 220SF41

Lifting tool

Lifting tool

Practical and ergonomic lifting hook for safe handling of grates and perforated plates. Provides a stable grip and reduces the risk of injury when lifting. Ideal for maintenance and installation.

Part no. 1LK1

Key for trap

Key for trap

Key for trap with shut-off.

Part no. 1NV1

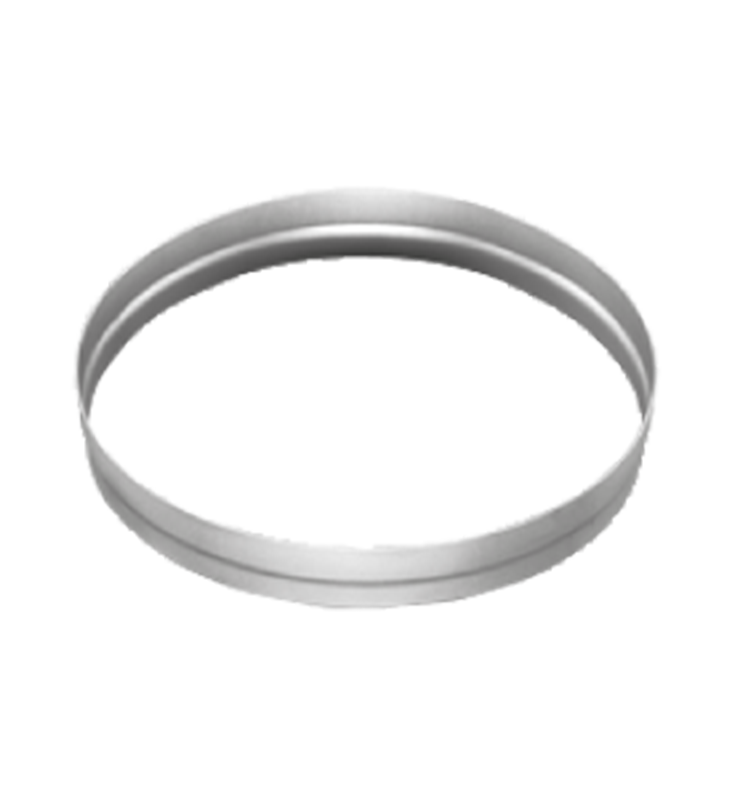

Extension part

Extension part, provides space for extra large accessories. Increases total height by 82 mm.

Part no. 1VPA220

Inlet part

Inlet part with Ø 50 mm connection. Installation increases the overall height by 82 mm.
The invert level at the inlet is positioned 70 mm below the top depth (D).



Part no. 1VIN220

Earth braid

Earth braid for potential equalization. Compatible with any attachment point on floor drains and channels.

For more information:
Installation instructions for earth braid

Part no. 1VJF

Drain without trap

Floor drain without built-in trap. A trap can be easily retrofitted if needed.

  • Capacity: 6 liters per second

Part no. 1VSU220

Mounting, threaded rod

Mounting, threaded rod

Easy adjustment from above.

  • Height 300 mm.
  • Foot diameter = 100 mm.

Part no. 1SB30

Plastic mounting rod

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

  • Height: 300 mm
  • Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Bits for plastic mounting rod

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16

Sealant Aqua Tät

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40

MagiCAD Cloud

BIM and CAD files

Do you need BIM or CAD files for your project? Download the files you need by clicking the links below.
