Terrace drain, outlet FURO 191

Outlet section for terrace drain with a long, cuttable outlet pipe. In stock for immediate delivery.

Outlet section for terrace drain, designed for terraces, courtyards, and garages where there is a risk of freezing and traditional floor drains with water traps cannot be used.

Adapted for installation in concrete slabs and waterproofing layers of bitumen, mastic, or cast asphalt.
Delivered with a 150 mm wide perforated bonding flange for maximum sealing and secure connection.
Cuttable outlet pipe Ø 75 mm minimizes joints and simplifies installation.
Manufactured from acid-resistant stainless steel EN 1.4404 (SS 2348) for maximum corrosion resistance and long service life.
Equipped with a protective cover to prevent construction debris from entering during installation.
Supplied with a support ring for mastic and cast asphalt for easier installation.
In stock for immediate delivery.

Technical specifications

Material: Acid-resistant stainless steel EN 1.4404 (SS 2348).
Outlet: Ø 75 or Ø 110 mm cuttable outlet pipe.
Flange: 150 mm wide perforated flange.
Application: Waterproofing layers of bitumen, mastic, or cast asphalt in concrete slabs.
Approvals: FURO 191 meets the requirements of AMA Hus 18, sections JSE.171 and JSE.271. In the version with a 110 outlet, it also complies with Tätskiktsgarantier’s TR-1 regulations for roof drains.

L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.
M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.

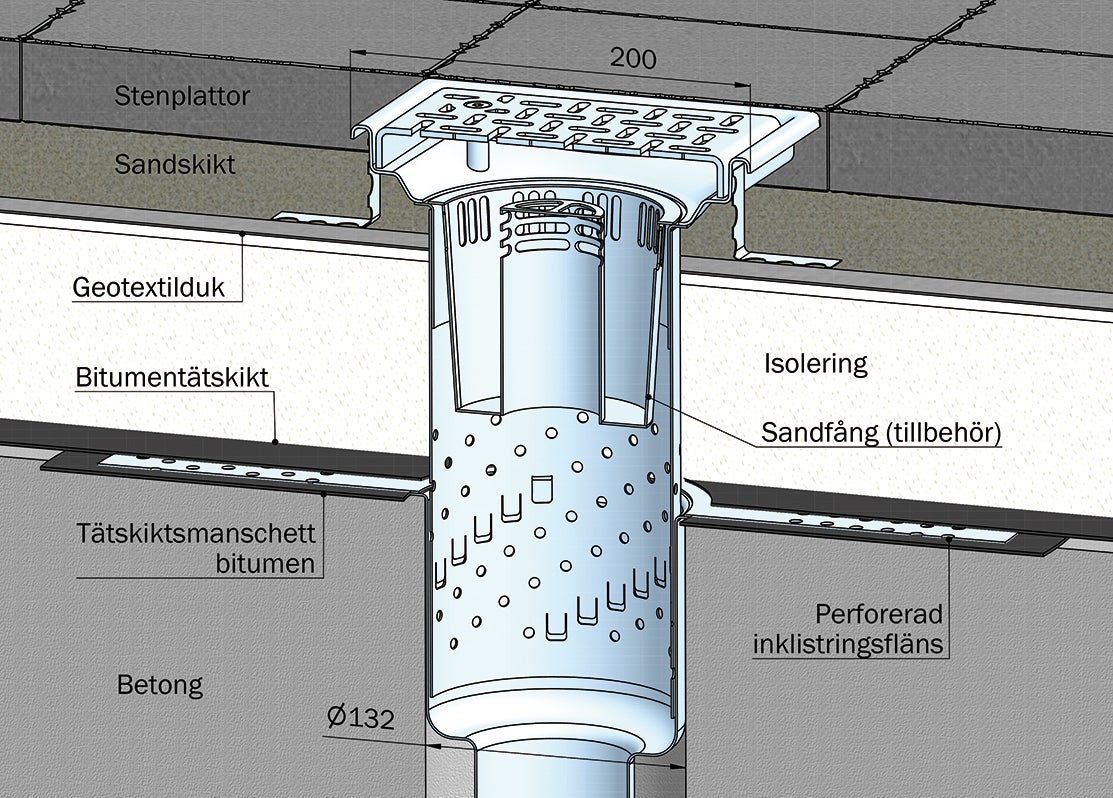

Variants

Terrace joists

Floor material: Paving stones/Slabs

Water proofing: Bitumen

Water proofing drain flange: 150 mm perforated adhesive flange

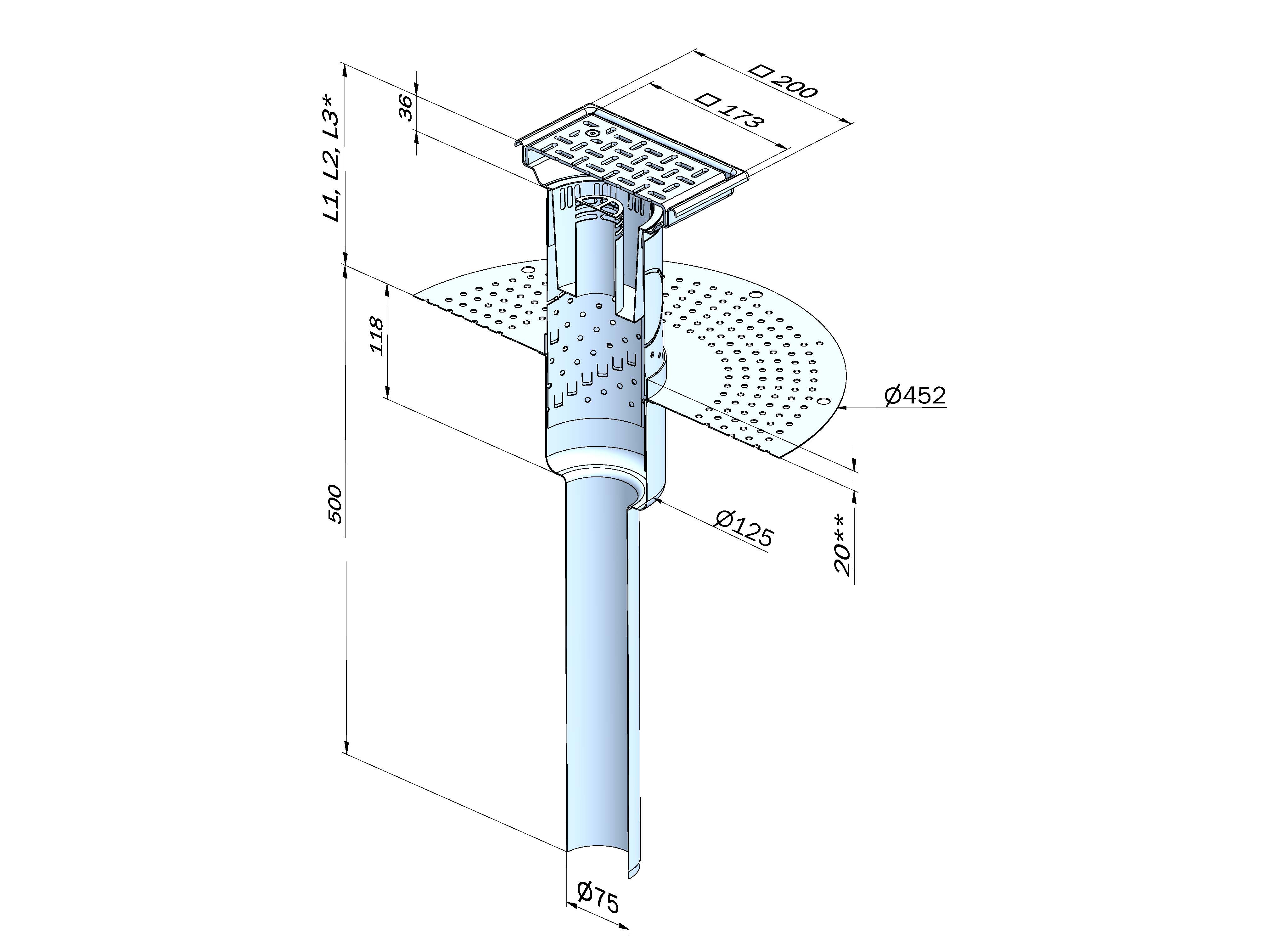

Dimensions for terrace drain FURO 191

**The support ring is used for mastix and cast asphalt as reinforcement.

See FURO 191, superstructure for specific information about the upper section component.

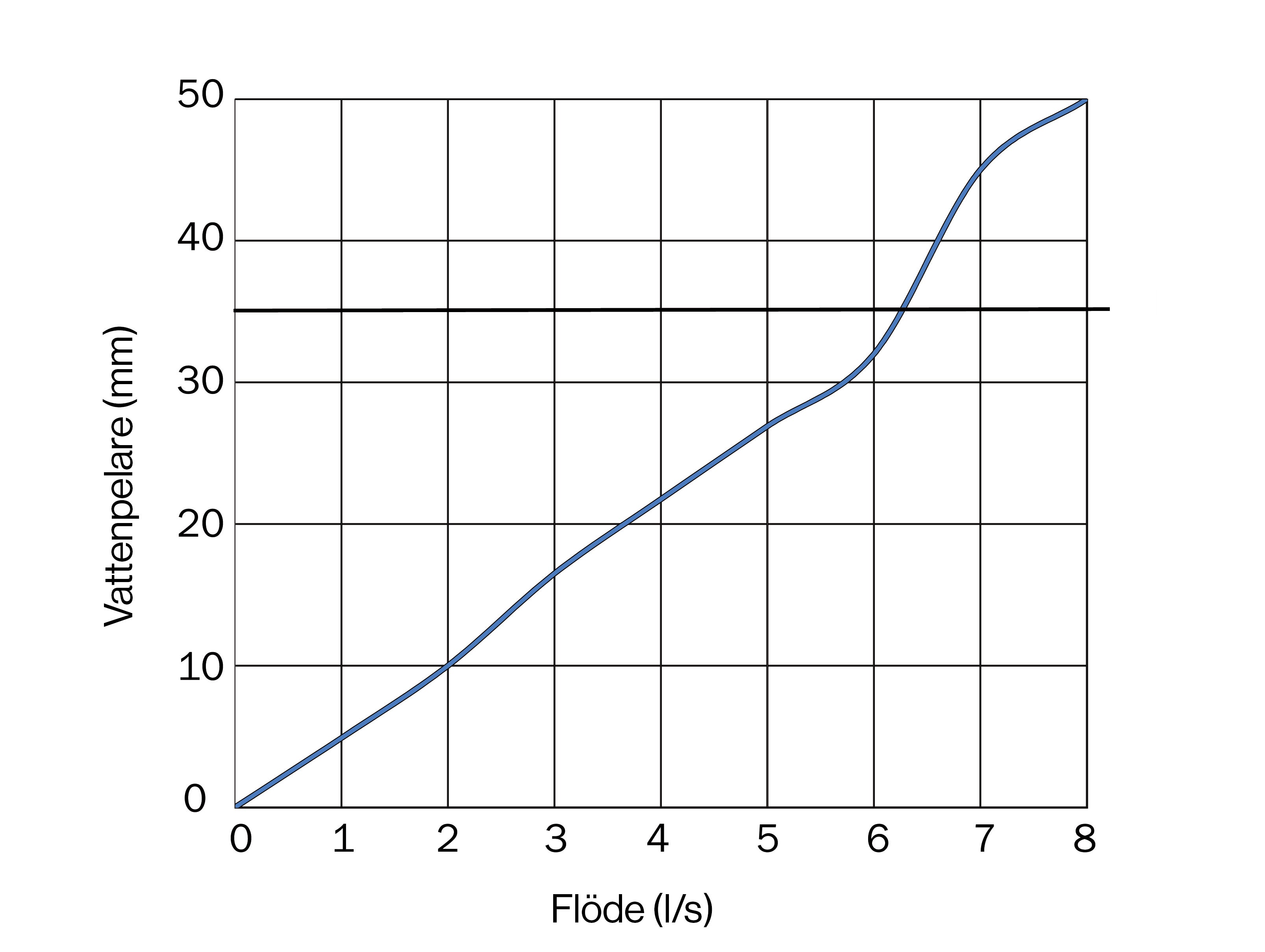

Capacity measurement:

The capacity measurement for the terrace drain has been carried out in accordance with the requirements for roof drains in SS-EN 1253-2, with an overlay height of 160 mm.

Vattenpelare (mm) = Water column (mm)
Flöde (l/s) = Flow (l/s)

B 75

Bottom outlet Ø75 mm

B 110

Bottom outlet Ø110 mm

S 75

Side outlet Ø75 mm

Electric heating loop, 3 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

Cable: Delivered pre-assembled with at least 3 meters of electrical cable (without a plug).
Power: 20W
Connection: Connects to 230 V

For more information:
Product information Electric heating loop

Part no. 1VELS

Electric heating loop, 4-12 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

Cable: Delivered pre-assembled with 4-12 meters of electrical cable (without a plug).
Power: 20W
Connection: Connects to 230 V

For more information:
Product information Electric heating loop

Part no. 1VELSL

Anchors

Anchors for fixation in the floor structure during the casting of the concrete slab/floor structure.

Part no. 1VMF

Extended outlet pipe Ø75

Outlet pipe Ø75 mm extended by 377 or 490 mm. Provides extra flexibility during installation and allows connection even at greater distances to the drainage system.

Part no. Z-FLUR-377-75

Extended outlet pipe Ø110

Outlet pipe Ø110 mm extended by 362 or 490 mm. Provides extra flexibility during installation and allows connection even at greater distances to the drainage system.

Part no. Z-FLUR-362-110

Mounting, threaded rod

Easy adjustment from above.

Height 300 mm.
Foot diameter = 100 mm.

Part no. 1SB30
