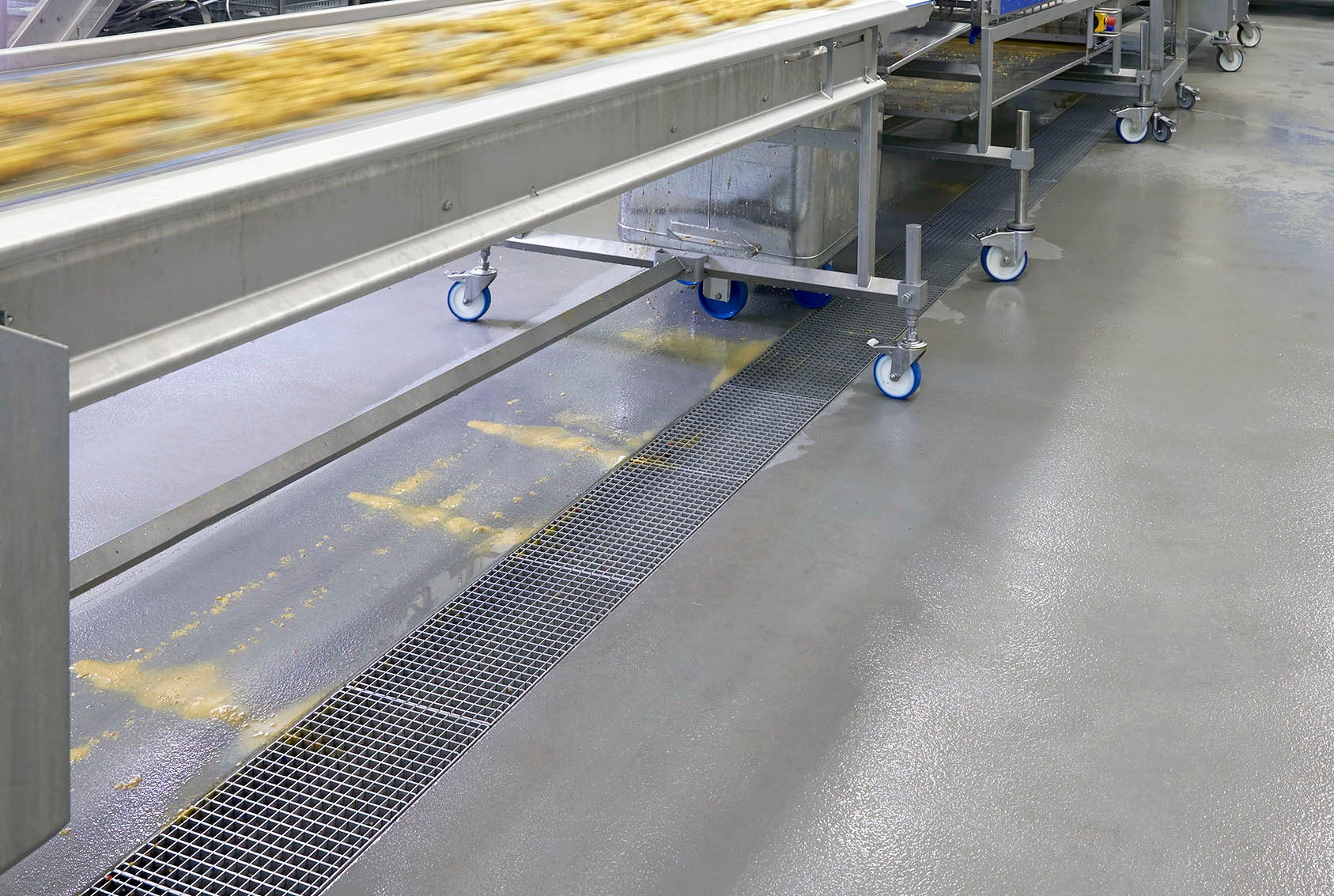

Floor drain FURO 151

Floor drain FURO 151

För industri m.m. Finns för flera belastningsklasser.
  • Valfri längd x bredd 300 mm.
  • Kvalitet rostfritt EN 1.4301 (SS 2333) alt. syrafast rostfritt EN 1.4404 (SS 2348).
  • För ingjutning i betonggolv.
  • Rännöverdelar för klinkergolv, massagolv samt stålslipat betonggolv som är vridbara 360°, vinkelställbara och teleskopiska.
  • Rännans botten är V-formad för att underlätta självrensning.
  • Golvrännan har urtagbart vattenlås med handtag.
  • EPDM-gummitätningar enligt EN 681-1 typ Wc.
  • Rostfritt, körbart rutgaller, utfört i delar med max vikt 8 kg per del.
  • Installationstillbehör som ingår: Levereras täckt för att hindra betong från att rinna ner i rännan under gjutning. Rejäla fästöron för förankring i bjälklaget. Dessa ger möjlighet till enkel höjdjustering ovanifrån. Vid massagolv ingår ursparingslister på vidhäftningsflänsar.
  • R50 For areas with medium weight traffic. Tested acc. to EN 1253-1 with 33 kN load.
  • M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.

Variants

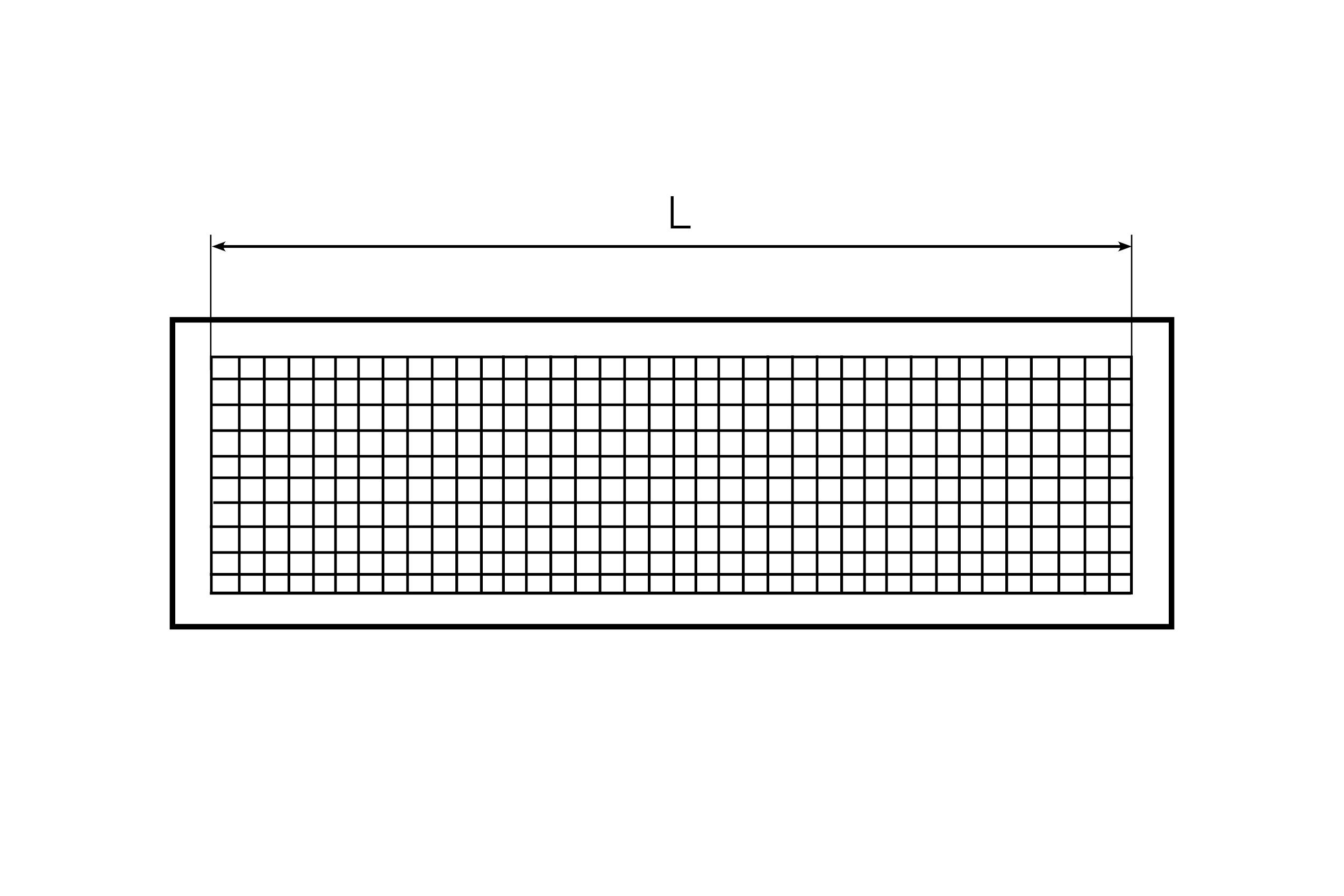

Variable length:

  • Length (min-max) 500–20000 mm, in 100 mm intervals.
  • Fixed width: 300 mm.

Variable depth:

  • 100 mm, a good choice up to 8000 mm.
  • 150 mm, recommended for lengths between 8000–20000 mm.

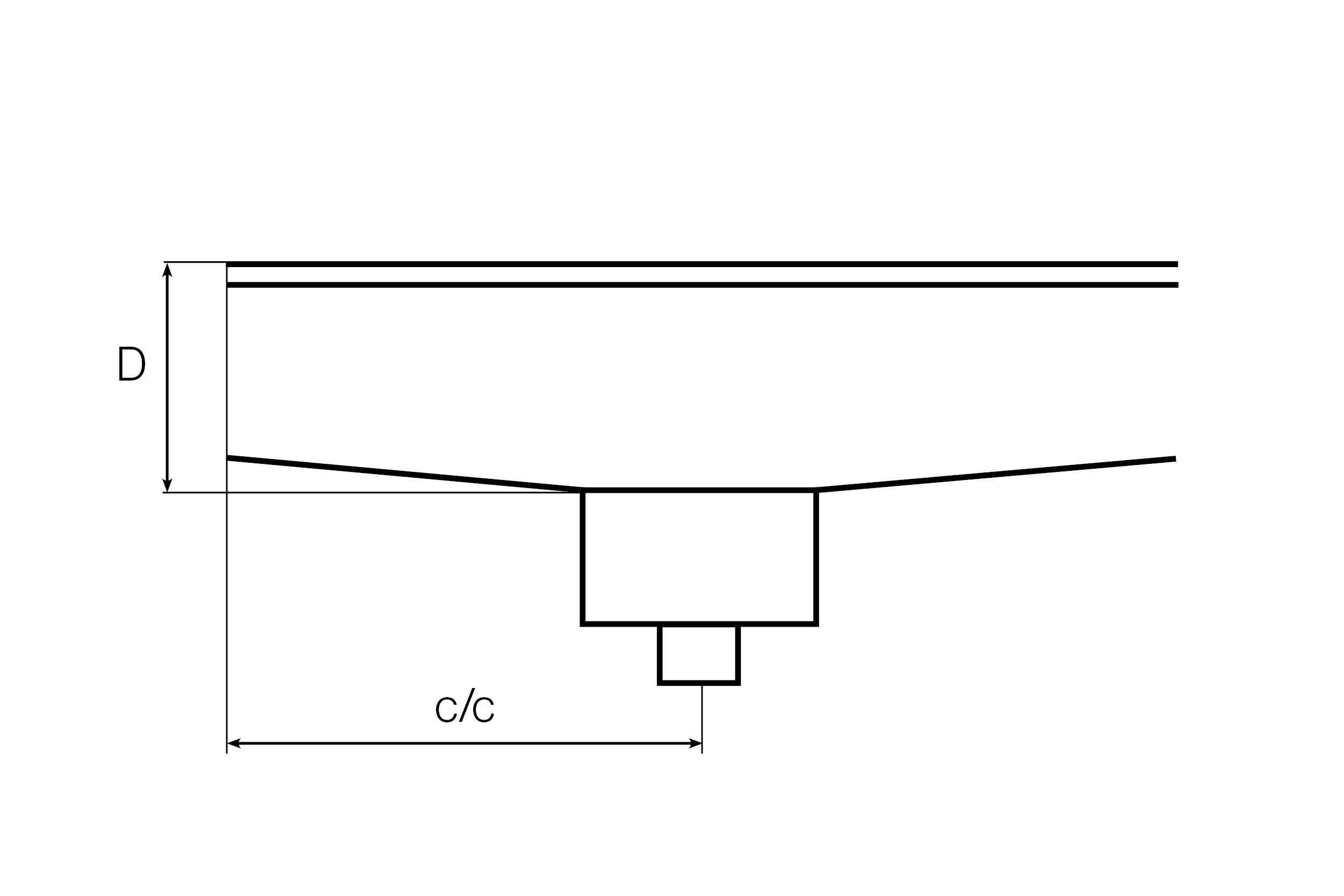

Outlet placement:
Standard is center-positioned outlet, but placement can be selected.

  • Indicate c/c from the left.

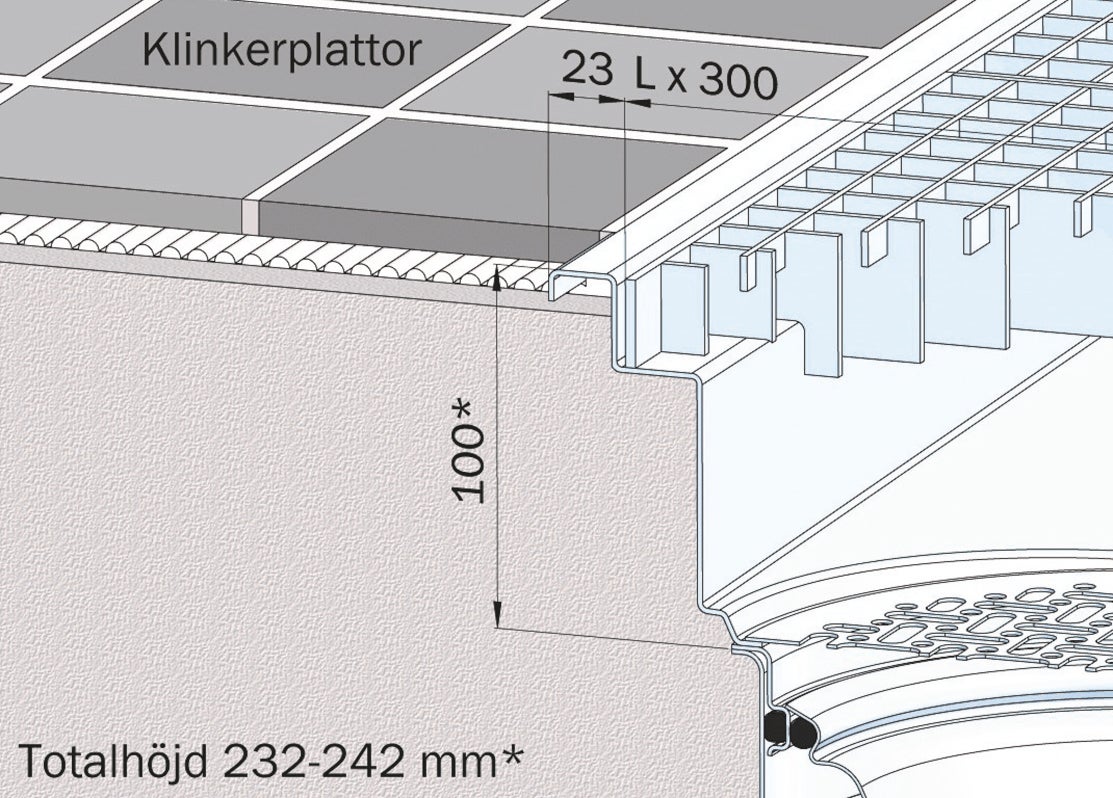

Clinker floor K3

Clinker floor K3

Floor material: Clinker in adhesives
Water proofing: Floor without waterproofing
Water proofing drain flange: None

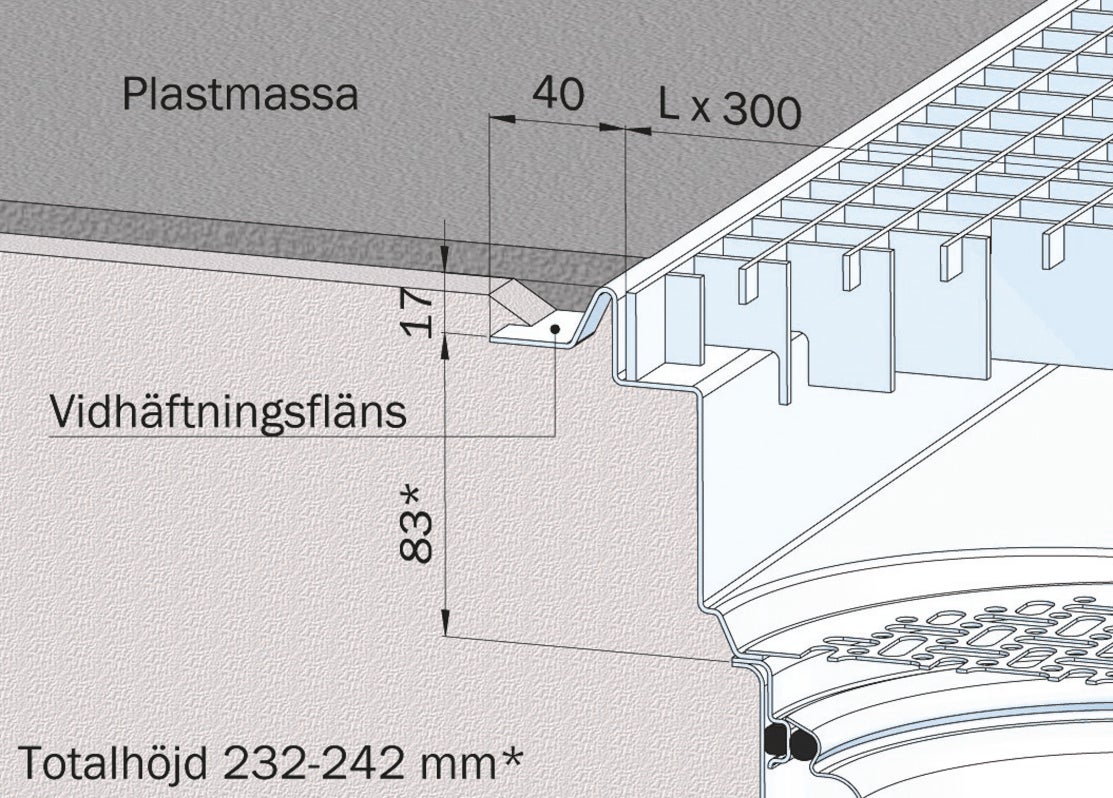

Resin flooring

Resin flooring

Floor material: Resin flooring
Water proofing: Compound floor
Water proofing drain flange: Recess for resin floor

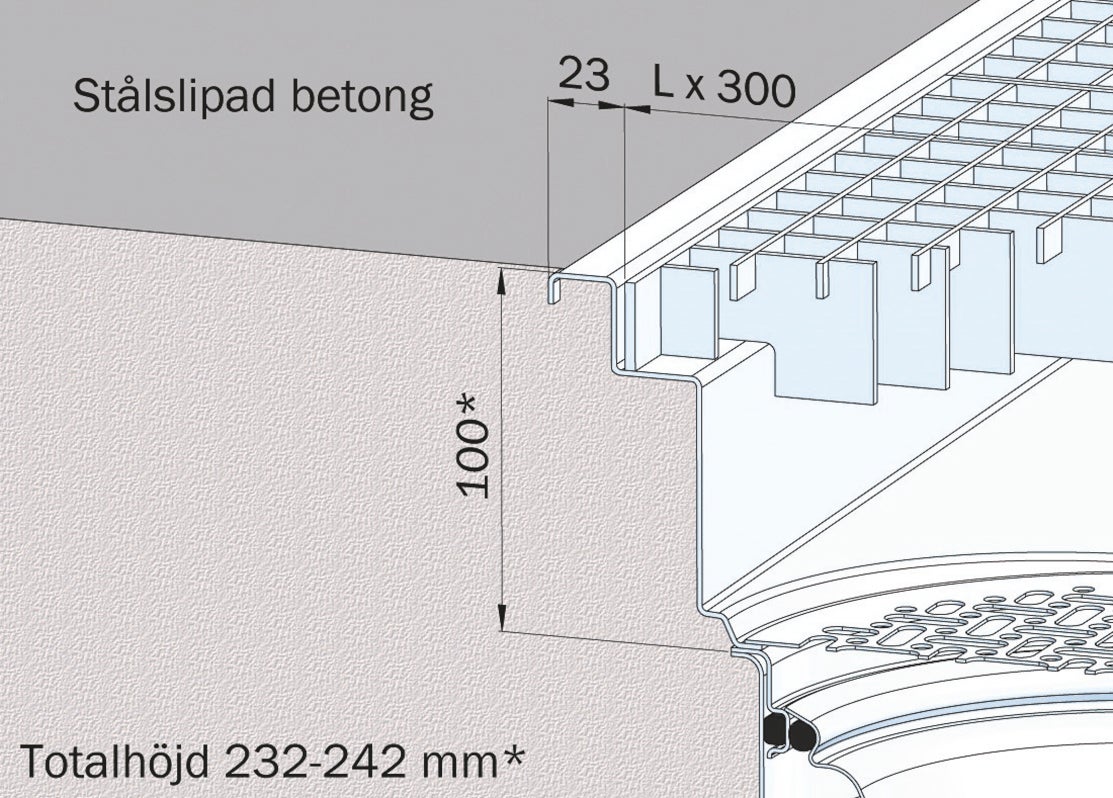

Concrete floor

Concrete floor

Floor material: Concrete floor
Water proofing: Floor without waterproofing
Water proofing drain flange: None

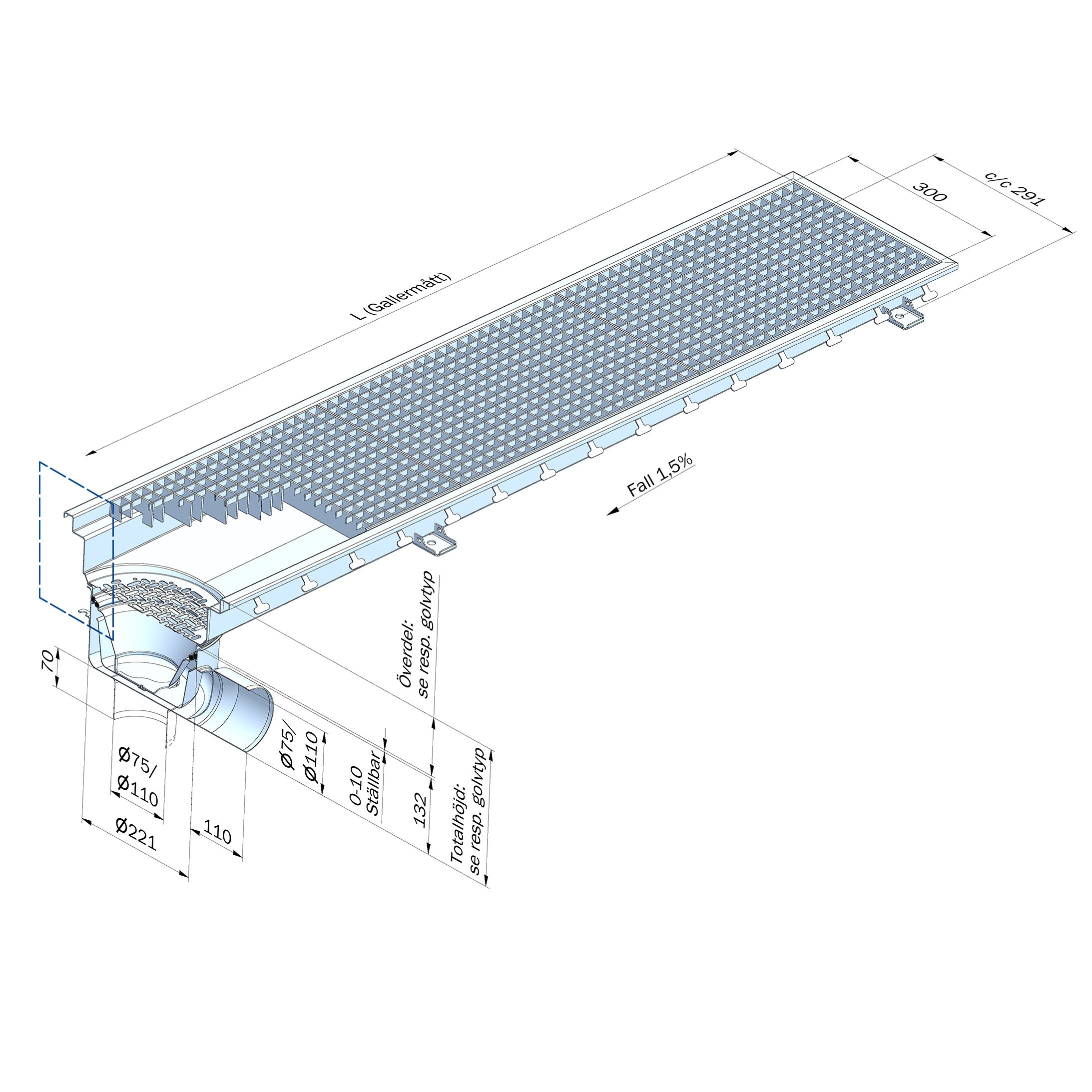

Dimensions for FURO 151 floor channel:

*The product has a slope towards the outlet.

For more information, see the section:
"Water flow, total height, upper part depth, and slope towards the outlet"


Drains and channels always have a connection pipe and their water flow (V.g.) to consider. Water flow is always measured from the so-called bottom line of the pipe.

To facilitate product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface to where the water exits the product. For bottom outlets, the measurement point is where the spigot begins.

The total height (H) is always made up of the top depth (D) plus the outlet section of the product. If the top depth is increased, the total height will also increase, affecting the product's water flow.

Dimensions for FURO 151:

  • The upper part depth (D) can vary between 100 and 150 mm. (100 mm is standard for lengths up to 6000 mm).
  • The total height (H) of FURO 151 thus ranges between 232 and 282 mm. (232 mm is standard for sizes up to 6000 mm).
  • If an extension or inlet part is selected, the total height (H) increases by 82 mm.



Slope toward outlet:

The product’s slope toward the outlet varies depending on the length and chosen upper part depth. For the standard design with a centrally positioned outlet, the following applies:

  • For lengths up to 6000 mm and recommended depth of 100 mm, the slope toward the outlet is at least 1%.
  • For lengths between 6000 – 20 000 mm and recommended depth of 150 mm, the slope toward the outlet is at least 0.8%.


For requirements other than the above recommendations, the slope will be affected.

S 75

Side outlet Ø75 mm

Capacity 4,8 l/s


S 110

Side outlet Ø110 mm

Capacity 4,8 l/s


B 75

Bottom outlet Ø75 mm

Capacity 4,8 l/s


B 110

Bottom outlet Ø110 mm

Capacity 6 l/s

Trap

Trap

Part no. 220VH12

Trap with mechanical odor stop

Trap with mechanical odor stop

Part no. 220VL12

Water trap, odor and backflow stop

Water trap, odor and backflow stop

Water trap with mechanical odor and backflow stop.

Part no. 220VLB12

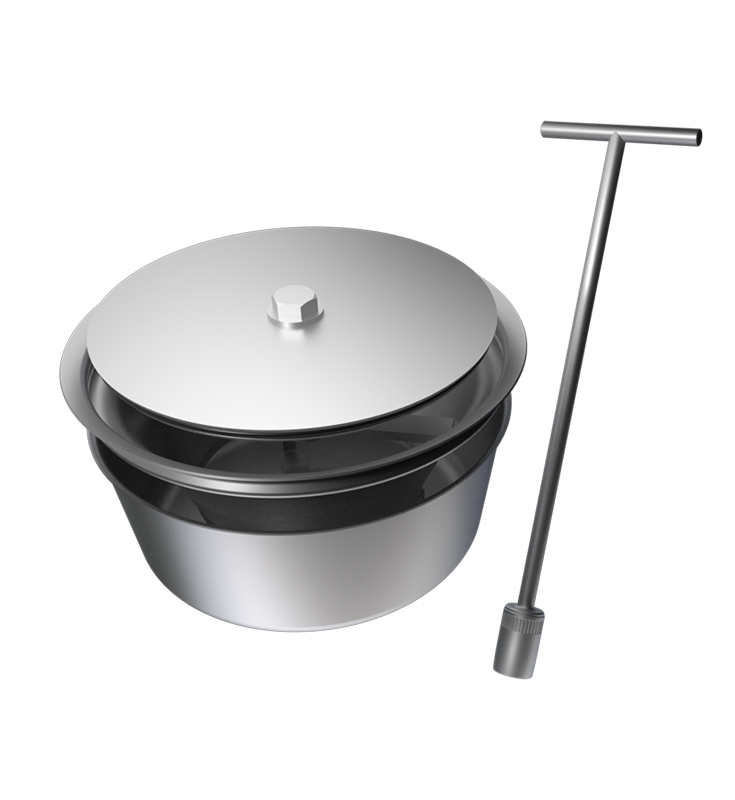

Trap with shut-off function

Trap with shut-off function

Part no. 220VA2

Grid, R50

Grid, R50

Grid with load class R50.

  • Maximum load: 5000 kg

Part no. Z-GALLER-R50

Grid, M125

Grid, M125

Grid with load class M125

  • Maximum load: 12500 kg

Part no. Z-GALLER-M125

Grate, M125

Grate, M125

Grate with load class M125.

  • Maximum load: 12500 kg

Part no. Z-SPALTLOCK-M125

Strainer basket, 1,2 liters

Strainer basket, 1,2 liters

  • Volume: 1.2 l
  • Capacity: 4.0 l/s

Part no. 220SK32

Strainer basket, 2.7 liters

Strainer basket, 2.7 liters

The strainer basket is suitable for drains without a trap and drains with an extension part.

  • Volume: 2.7 l
  • Capacity: 4.0 l/s

Part no. 220SK41

Sand trap, 0.9 liters

Sand trap, 0.9 liters

  • Volume: 0.9 l
  • Capacity: 1.5 l/s

Part no. 220SF61

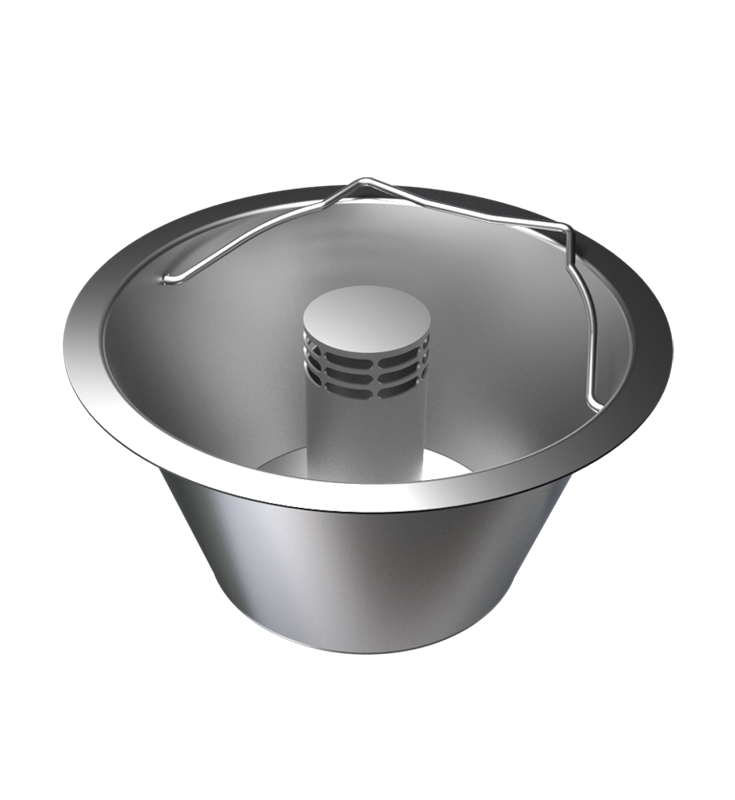

Sand trap, 1.5 liters

Sand trap, 1.5 liters

The sand trap fits in drains with an extension part or without trap.

  • Volume: 1.5 l
  • Capacity: 1.5 l/s

Part no. 220SF41

Lifting tool

Lifting tool

Practical and ergonomic lifting hook for safe handling of grates and perforated plates. Provides a stable grip and reduces the risk of injury when lifting. Ideal for maintenance and installation.

Part no. 1LK1

Key for water trap

Key for water trap

Key for locking Water trap 220VA2.

Part no. 1NV1

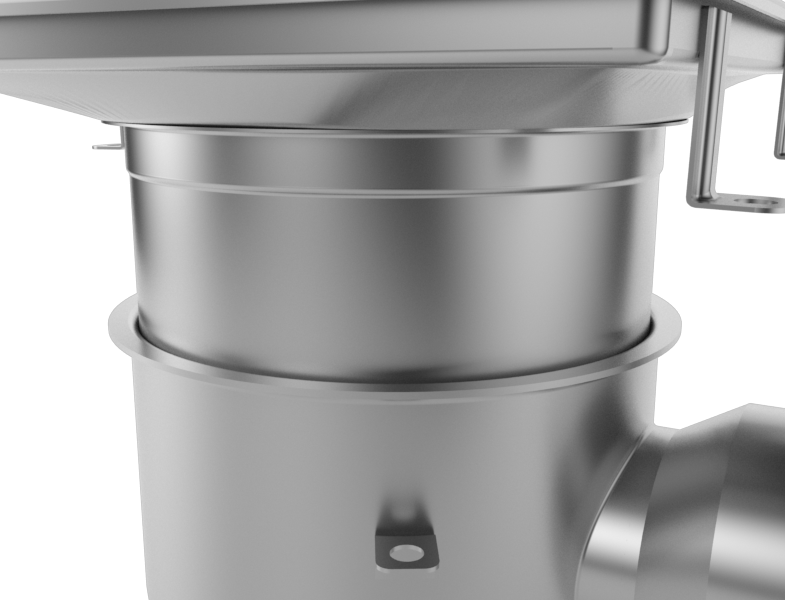

Extension part

Extension part

Extension part, provides space for extra large accessories. Increases total height by 82 mm.

Part no. 1VPA220

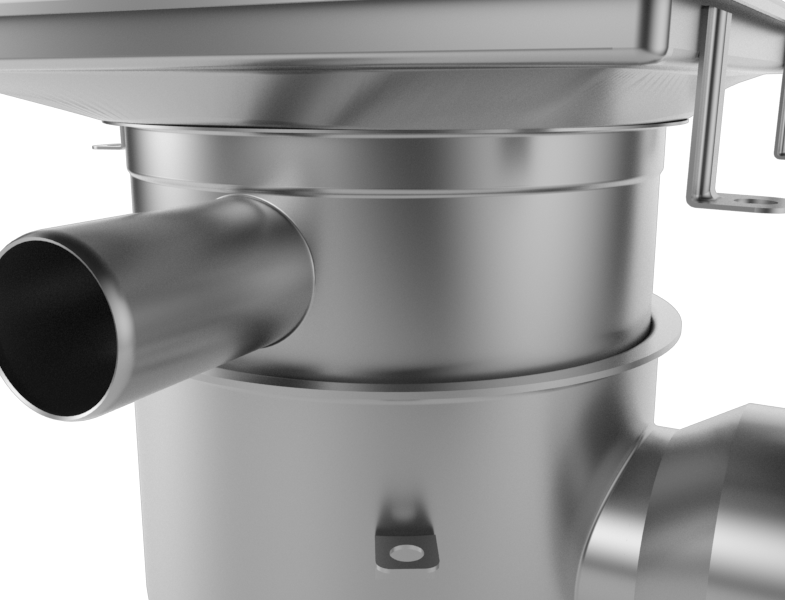

Inlet part

Inlet part

Inlet part with Ø 50 mm connection. Increases total height by 82 mm.

Part no. 1VIN220

Radon sealing

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Earth braid

Earth braid

Earth braid for potential equalization. Compatible with any attachment point on floor drains and channels.

For more information:
Installation instructions for earth braid

Part no. 1VJF

Drain without trap

Drain without trap

Floor drain without built-in trap. A trap can be easily retrofitted if needed.

  • Capacity: 6 liters per second

Part no. 1VSU220

Mounting, threaded rod

Mounting, threaded rod

Easy adjustment from above.

  • Height 300 mm.
  • Foot diameter = 100 mm.

Part no. 1SB30
