Recessed wall cabinet FURO 976

Recessed wall cabinet FURO 976

Durable recessed wall cabinet made of acid-resistant stainless steel (EN 1.4404), providing long-lasting protection for installations such as outdoor water taps and cable penetrations.
  • FURO 976 is a durable wall cabinet made of acid-resistant stainless steel (EN 1.4404), providing long-lasting protection for installations such as outdoor water taps and cable penetrations. The cabinet is designed for recessed installation in walls or façades and is particularly suitable for exposed public environments, such as schools and residential areas.

  • The robust 1.5 mm acid-resistant stainless steel construction makes the cabinet resistant to both weather and external impact. The sloped bottom directs water away, ensuring a dry and safe environment for installed components. Hidden hinges reduce the risk of tampering and give a clean appearance without protruding parts.

  • The cabinet can be supplied with a cylinder lock (ASSA 8450) that can be integrated into a master key system, or with a stainless steel triangle lock for quick access during maintenance. Two keys are included with each cabinet.

  • The back panel can be supplied either solid or with openings for cable or pipe penetrations.

Sizes and models

  • The wall-mounted enclosure is available in several different sizes and depths to suit various installations and wall constructions. This makes it easy to choose an enclosure that fits both small and large components, as well as different types of mounting.
  • A standard model is also available with a recessed dimension of 250 × 250 mm, depth 100 mm, left-hinged door, cylinder lock (ASSA 8450) and solid back panel. This model offers a quick and secure solution without compromising on quality or function. Read more.

Technical specification – Recessed wall enclosure FURO 976

Material: Acid-resistant stainless steel EN 1.4404
Installation: Recessed in wall or façade
Sheet thickness: 1.5 mm
Hinges: Concealed
Bottom: Sloped for drainage
Door: Left- or right-hinged
Locking: Cylinder lock (ASSA 8450) or triangular lock in acid-resistant quality
Back panel: Solid or with opening for cable/pipe entry
Height (mm): 250–400 (in 50 mm increments)
Width (mm): 250–400
Depth (mm): 100 / 150 / 200

  • Check that current building regulations allow recessed installation of the cabinet.

  • Consider fire compartment boundaries, moisture protection, and insulation when choosing the cabinet depth.

  • Avoid creating thermal bridges and ensure watertight installations.

  • Installation under a roof or overhang is recommended.

Variants


Variable width (mm):

  • Width (B) = 250–400 (recessed dimension), in increments of 100 mm.


Locks:

  • ASSA 8450 cylinder lock with key

  • Industrial triangular lock (acid-resistant)


Variable height and depth (mm):

  • Height (H) = 250–400 (recessed dimension), in increments of 100 mm.
  • Depth (D) = 100 / 150 / 200 (recessed dimension)


Back panel:

  • Full back panel

  • Back panel with opening

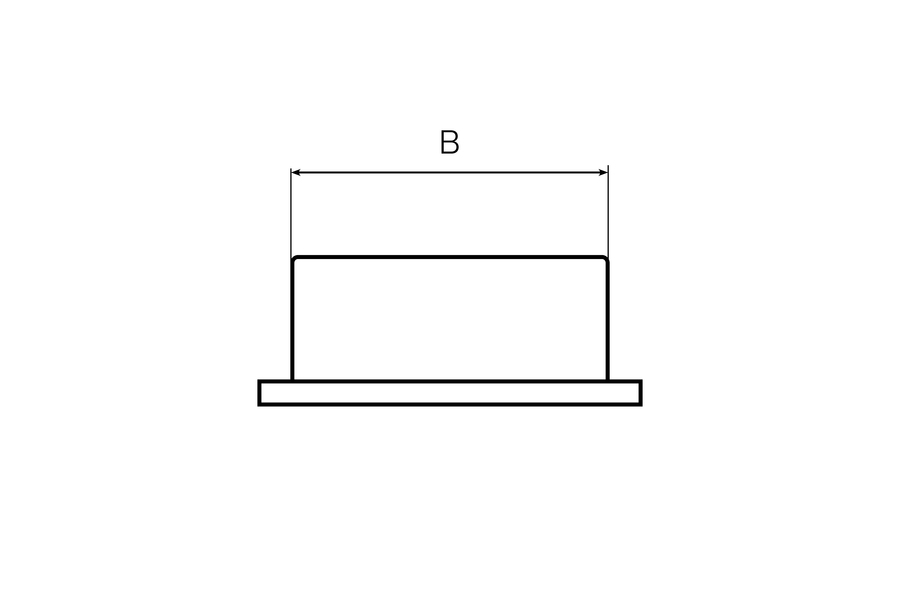

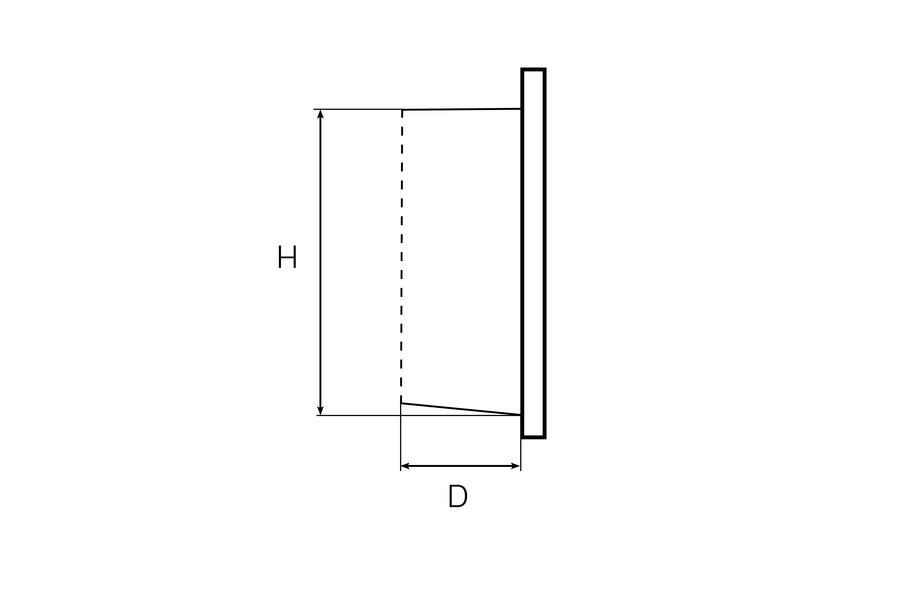

Dimensions for FURO 976


Dimensions for FURO 976

AMA
product.amaCode: XBD.2
MagiCAD Cloud

BIM and CAD files

Do you need BIM or CAD files for your project? Download the files you need by clicking the links below.

Magicad Cloud

Download MagiCAD model for this product.
