Mastic asphalt channel FURO 187

Mastic asphalt channel FURO 187

Mastic asphalt channel for drainage of car parks and other surfaces with mastic asphalt as the wearing and top layer.

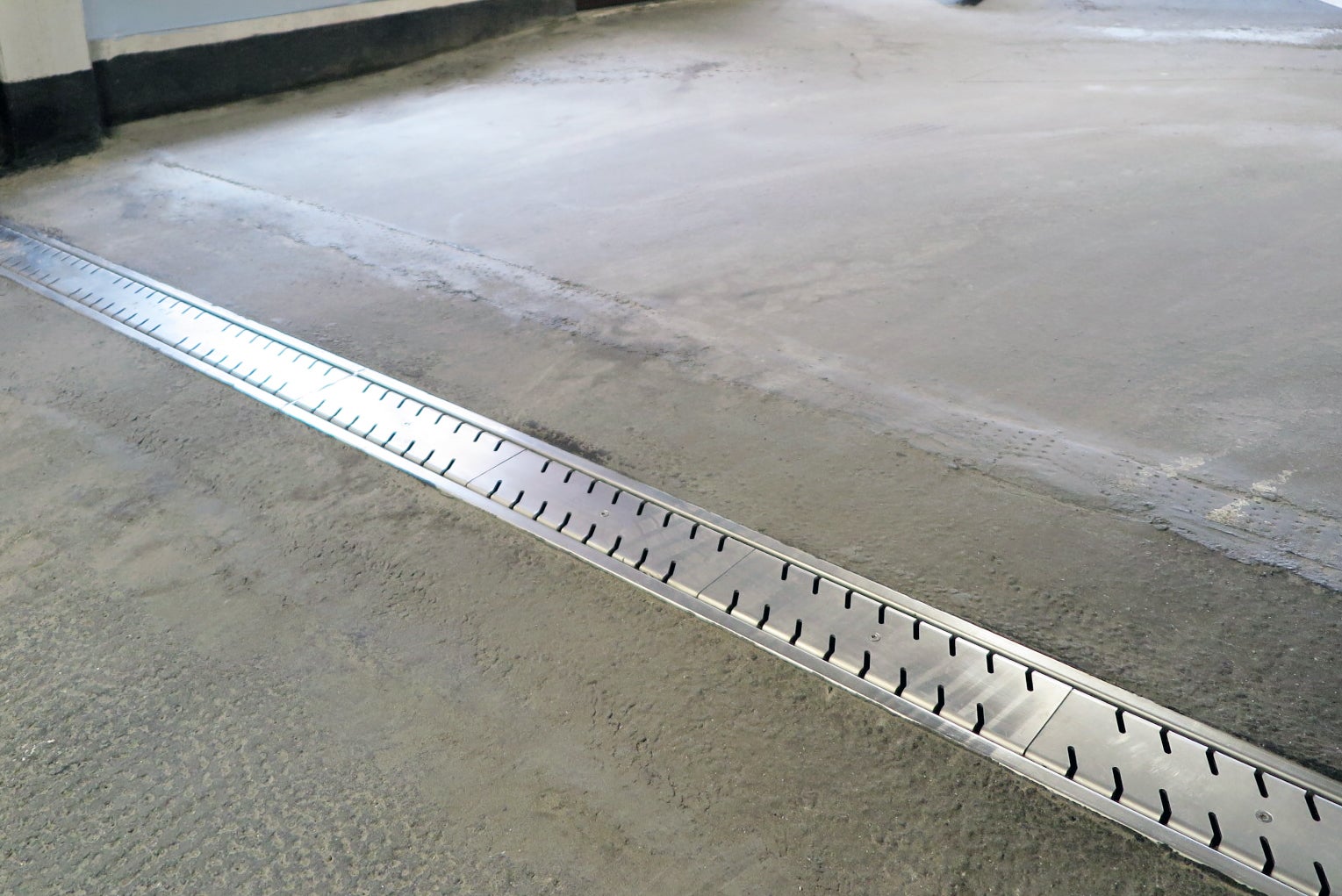

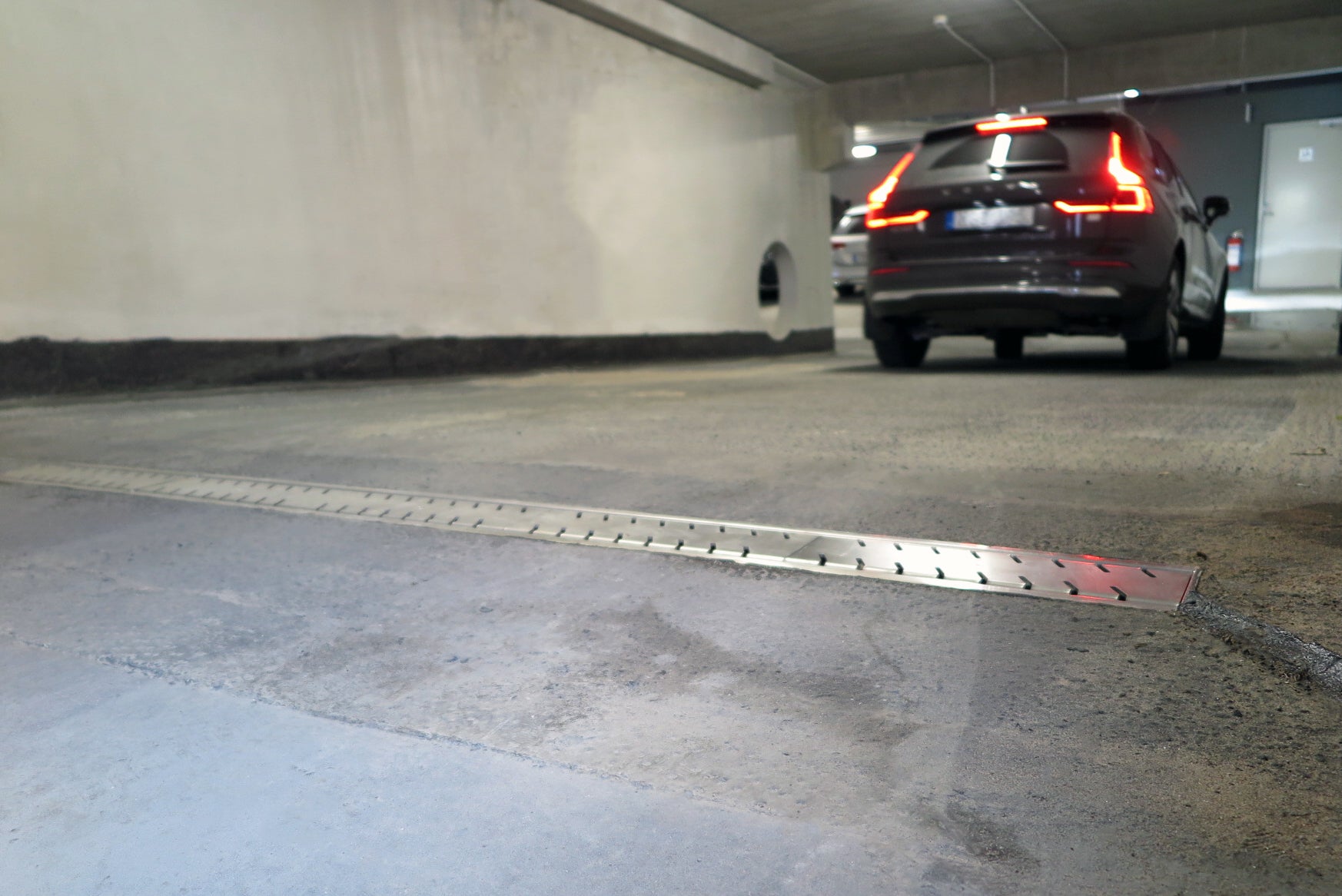

A durable, shallow channel designed for installation in mastic asphalt. The channel is installed above the waterproofing membrane, entirely within the mastic asphalt layer, and requires a minimum mastic asphalt thickness of 30 mm. Suitable for environments such as multi-storey car parks, where surface water needs to be collected from traffic lanes and parking areas.

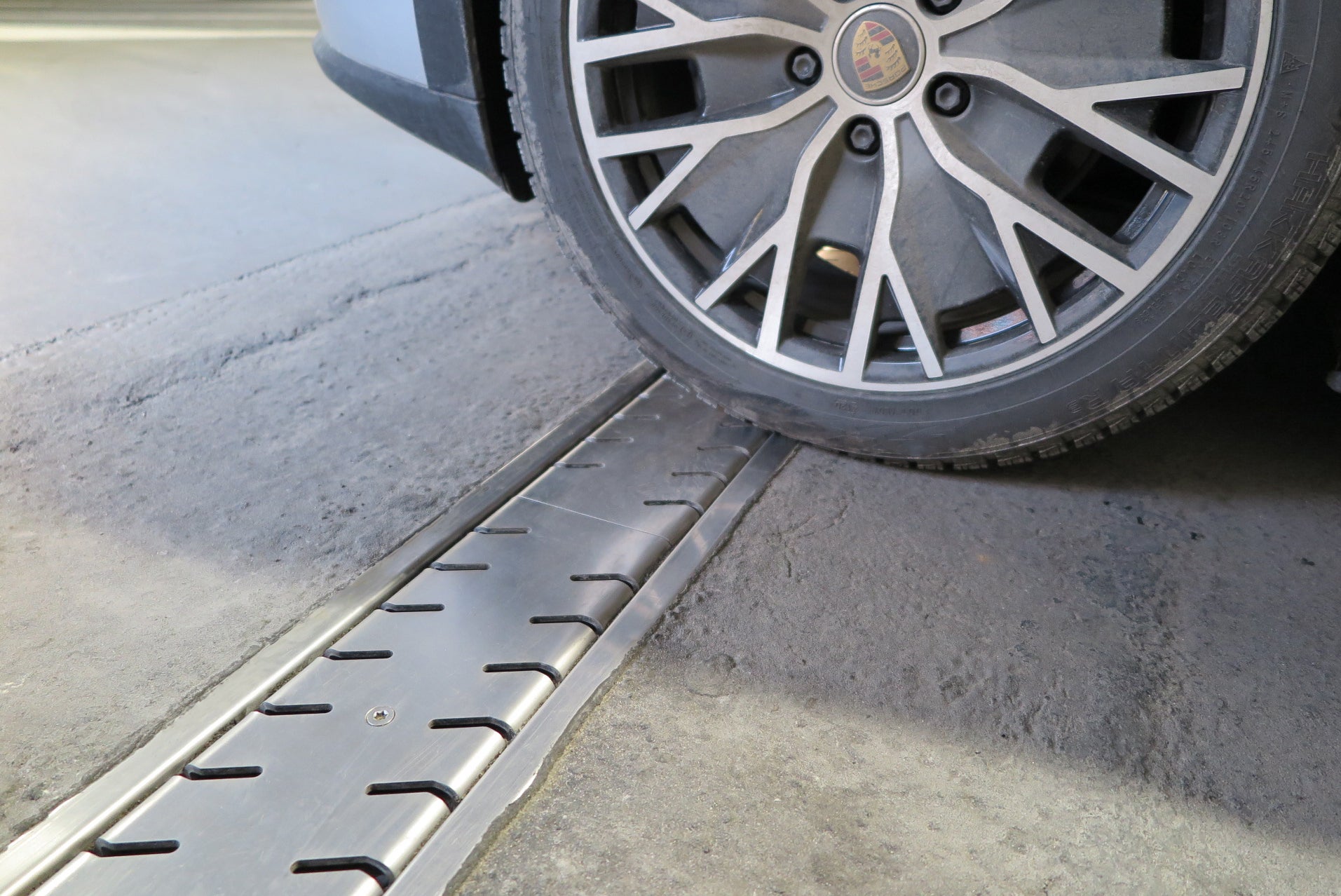

  • Durable, heavy-duty channel suitable for vehicular traffic.

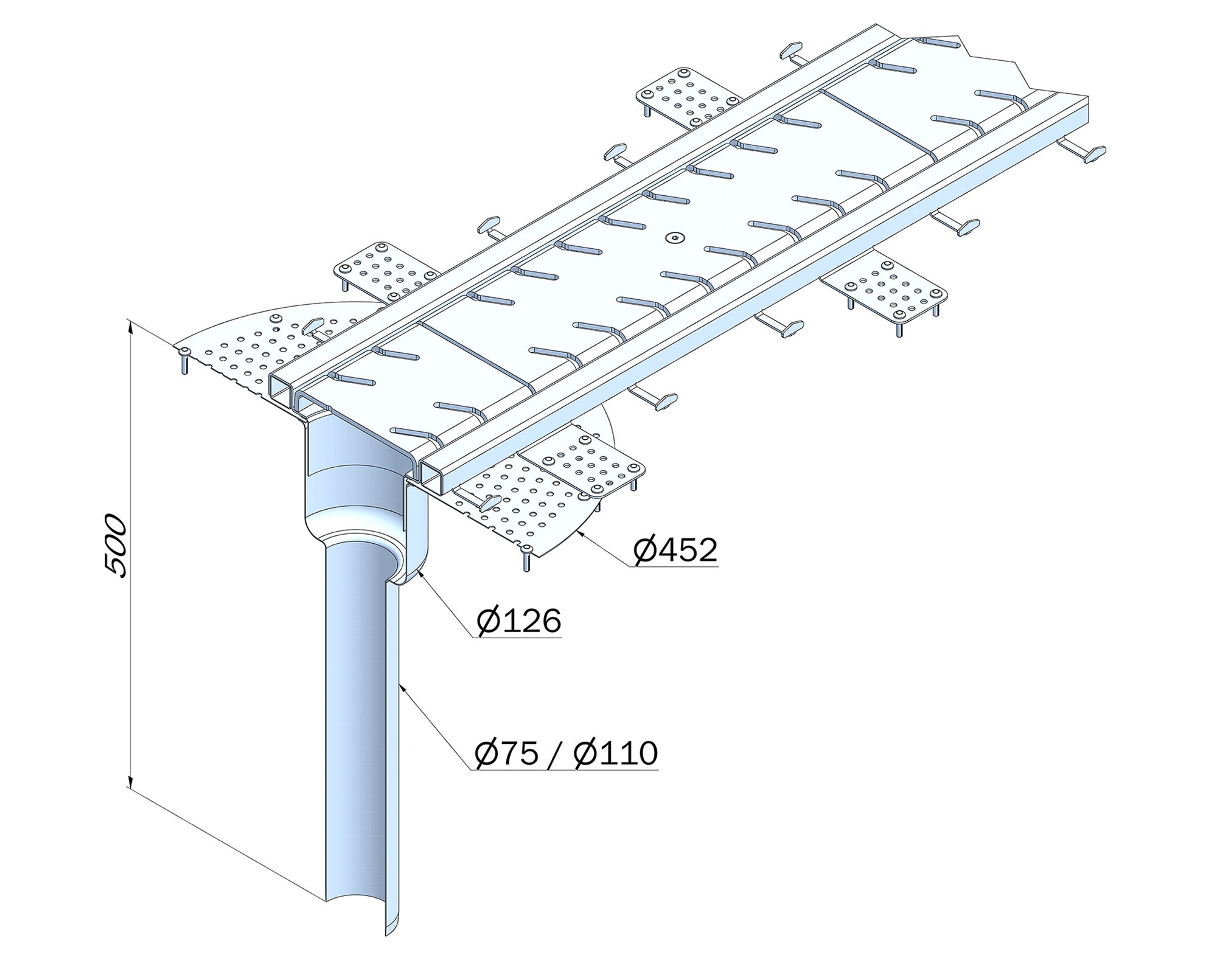

  • Reinforced edge sections with anchoring tabs for secure embedment in the mastic asphalt.

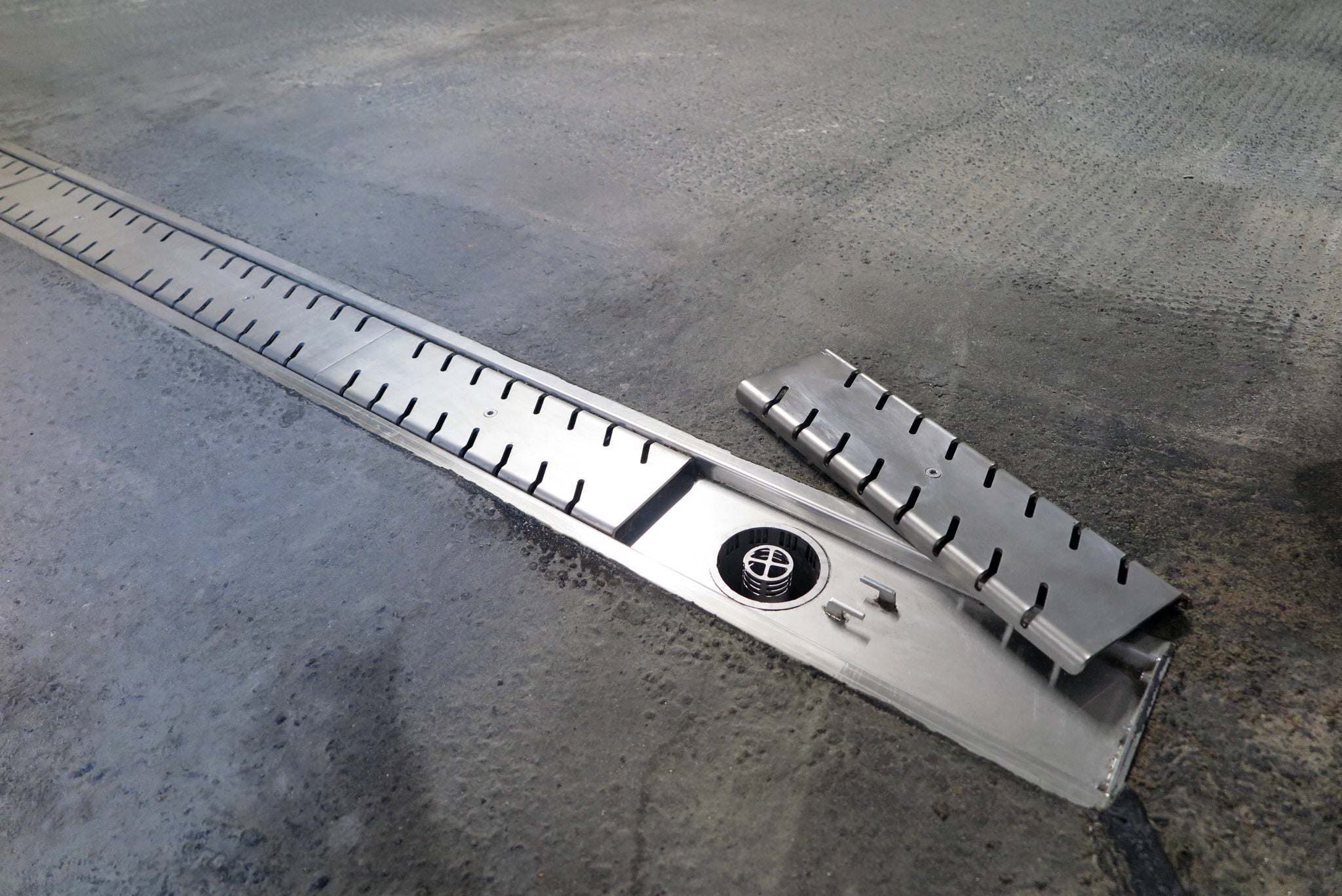

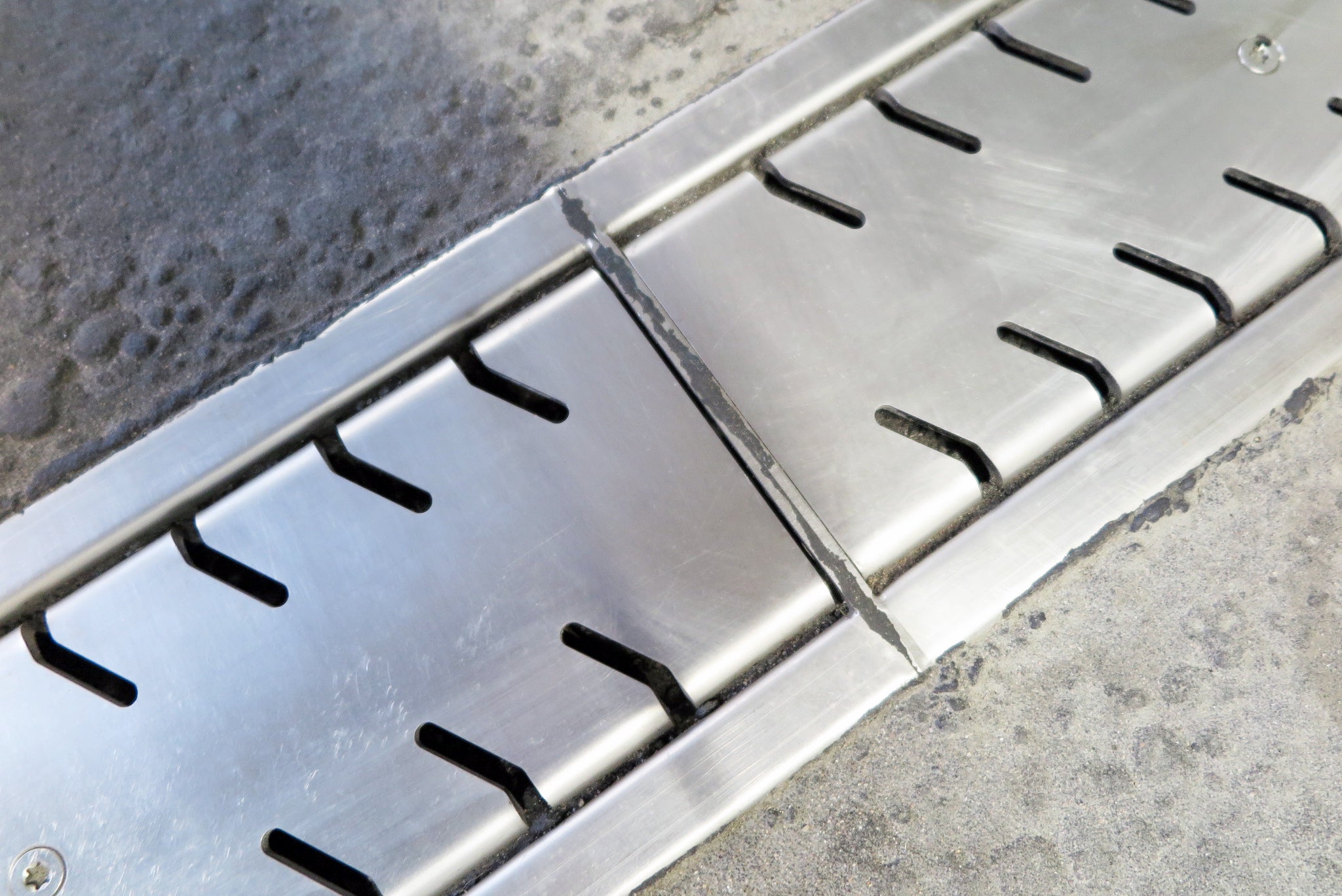

  • Screw-fixed cover plates remain stable and quiet when vehicles pass over them.
  • The channel has no built-in fall and is connected to one or more outlet sections.
  • Long, cut-to-length outlet pipe helps avoid joints within the floor slab.

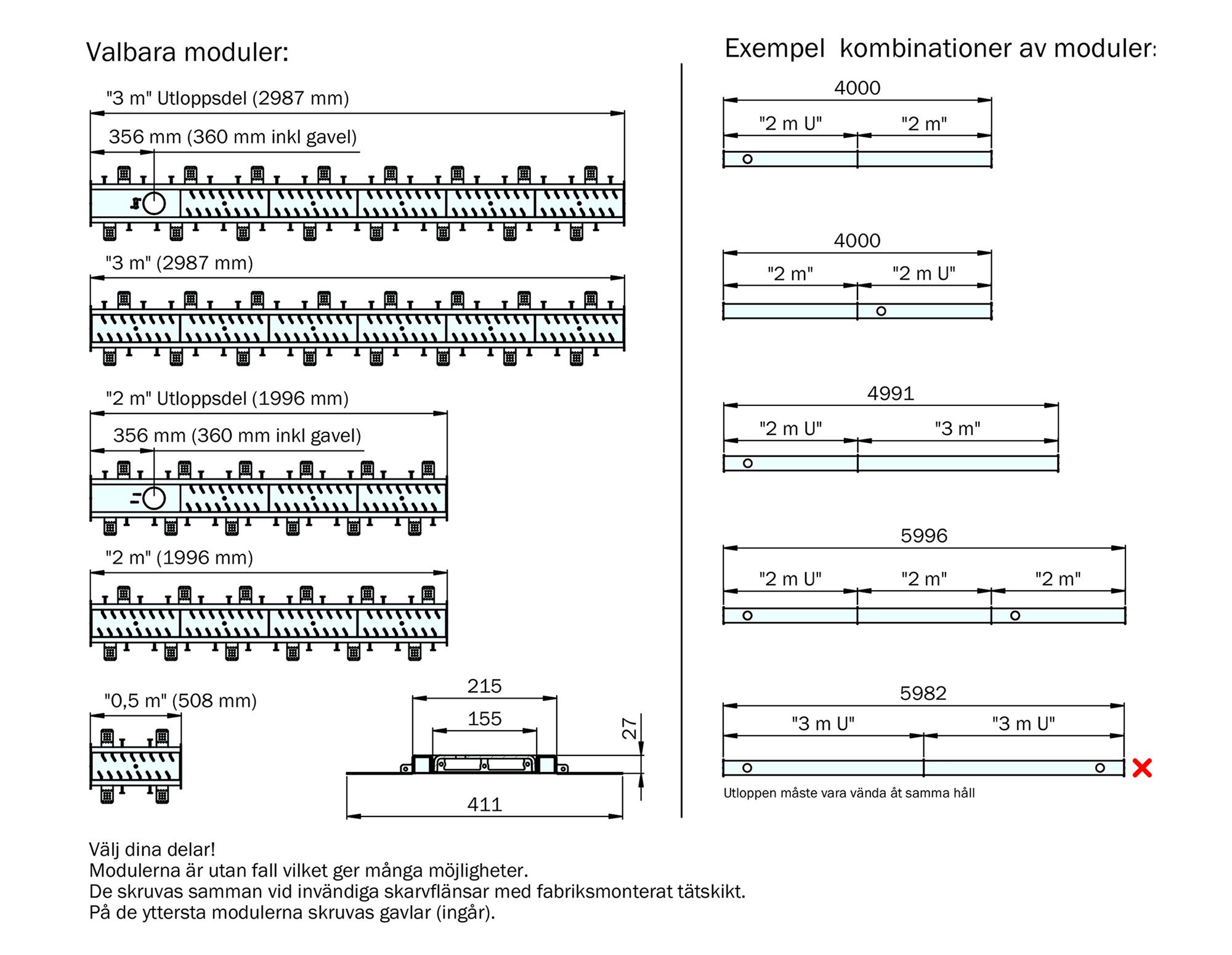

  • Flexible channel length thanks to a modular design. See available modules below the dimensional drawing.
  • Car park environments are regularly exposed to road salt and other corrosive contaminants. The channel is manufactured from acid-resistant stainless steel EN 1.4404 for improved corrosion resistance.
  • Outlet sections are available in 2 m and 3 m lengths and can be freely combined with the different modules.
  • R50 For areas with medium weight traffic. Tested acc. to EN 1253-1 with 33 kN load.

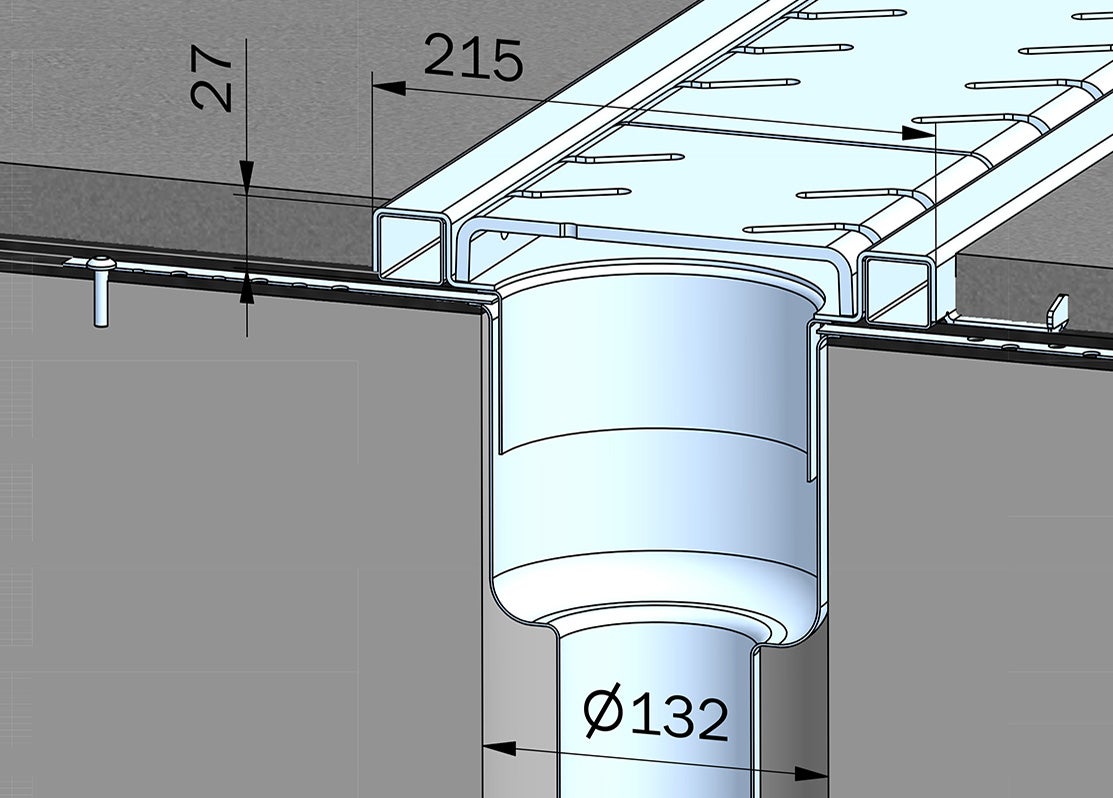

  • The outlet section is designed for installation in a concrete floor slab with a pre-drilled Ø132 mm hole.

  • The waterproofing membrane is installed in line with the channel.

  • The strong, rigid construction provides durable channel sections but requires installation on a flat and even substrate.

Variants

Cast asphalt

Cast asphalt

Floor material: Cast asphalt
Water proofing: Bitumen
Water proofing drain flange: 150 mm perforated adhesive flange
B 75

Bottom outlet Ø75 mm

B 110

Bottom outlet Ø110 mm

S 75

Side outlet Ø75 mm

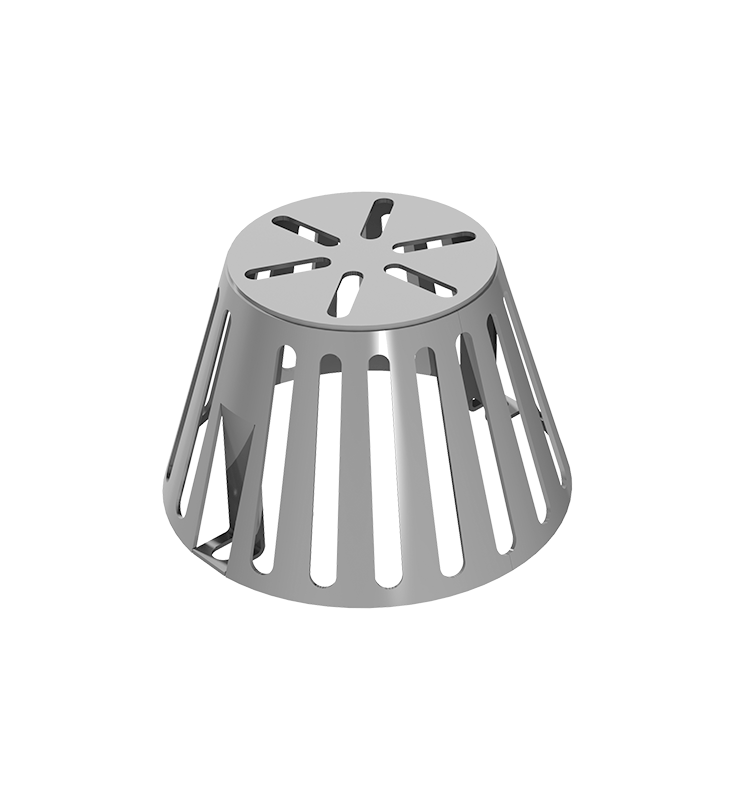

Dome strainer

Dome strainer

For areas with grass or trees.

Part no. 126KS12

Sand trap, 5 dl

Sand trap, 5 dl

  • Volume: 5 dl
  • Capacity: 5.5 l/s

Part no. 126SF52

Electric heating loop, 3 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

  • Cable: Delivered pre-assembled with at least 3 meters of electrical cable (without a plug).
  • Power: 20W
  • Connection: Connects to 230 V



For more information:
Product information Electric heating loop

Part no. 1VELS

Electric heating loop, 4-12 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

  • Cable: Delivered pre-assembled with 4-12 meters of electrical cable (without a plug).
  • Power: 20W
  • Connection: Connects to 230 V



For more information:
Product information Electric heating loop

Part no. 1VELSL
