Channel drain/gully for stations, terminals, metro systems, etc.

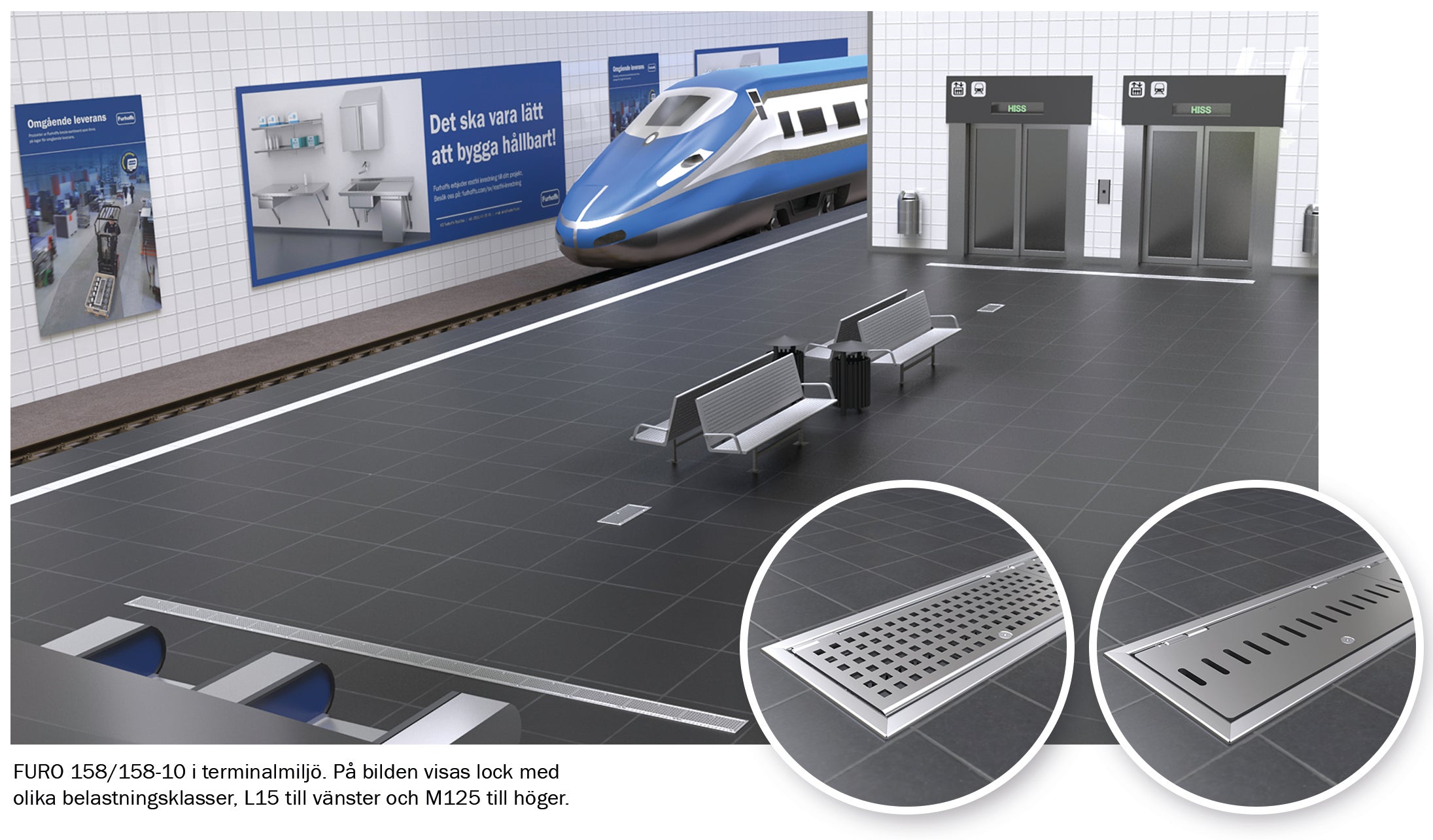

FURO 158 channel drain and FURO 158-10 gully, ideal for stations, terminals, metro systems and similar environments.

  • Supplied with a large sediment trap featuring a carrying handle.
  • Hinged and lockable covers with stainless steel hinges and Torx screws.
  • Covers available in two load classes: M125 and L15.
  • Removable water trap with carrying handle.
  • Custom length × 150 mm width, available in 400 mm increments.
  • Optional outlet centre distances (c/c), available in 400 mm increments.
  • Designed for casting into concrete floors and tiled floors without a waterproof membrane.
  • Manufactured from acid-resistant stainless steel EN 1.4404 (SS 2348).
  • EPDM rubber seals in accordance with EN 681-1 Type Wc.
  • Installation accessories included: Delivered with protective covers to prevent concrete from entering the channel during casting. Robust anchor brackets for secure fixing to the floor structure, allowing easy height adjustment from above.


Variants

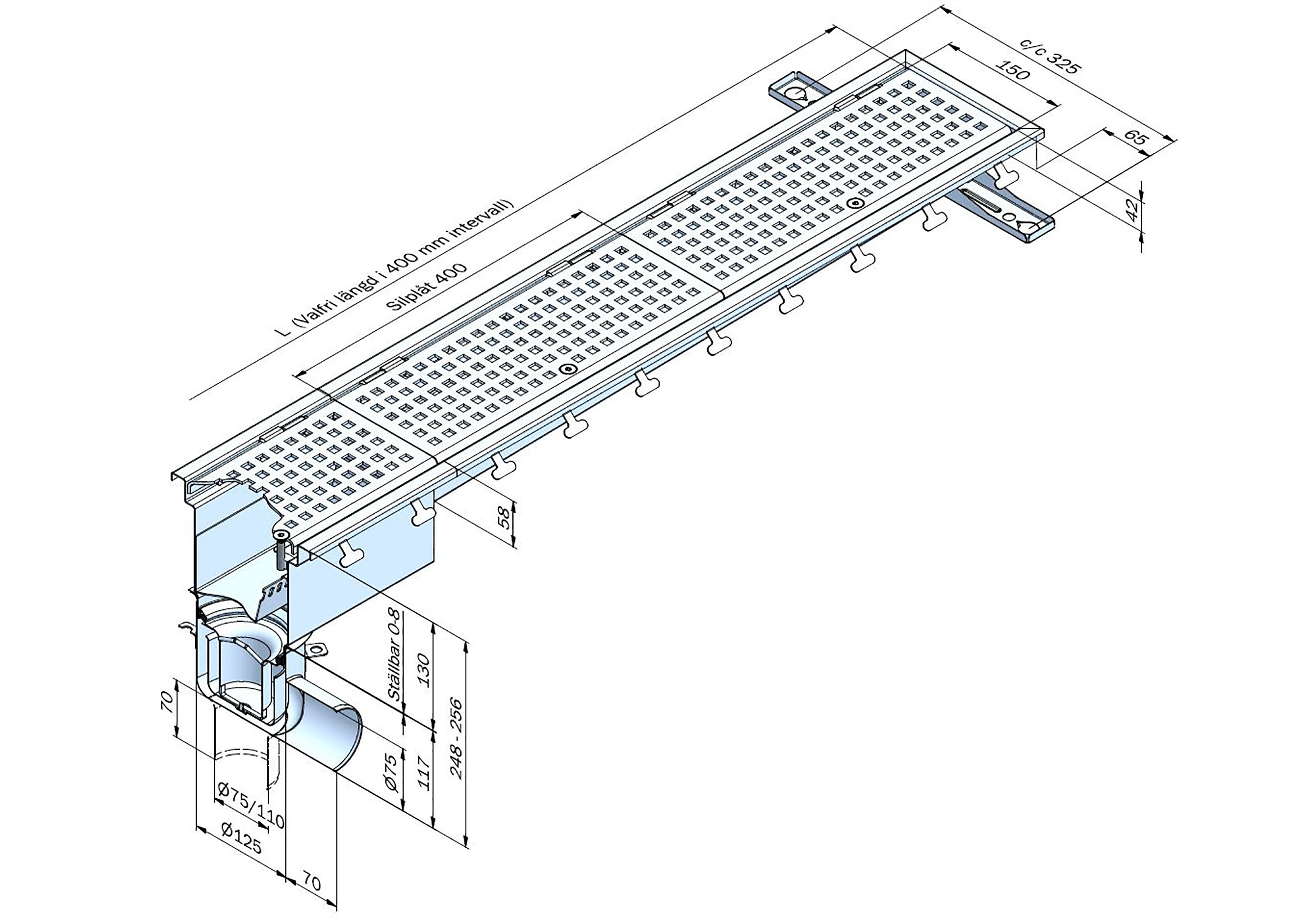

Dimension Drawing, Floor Channel Drain FURO 158

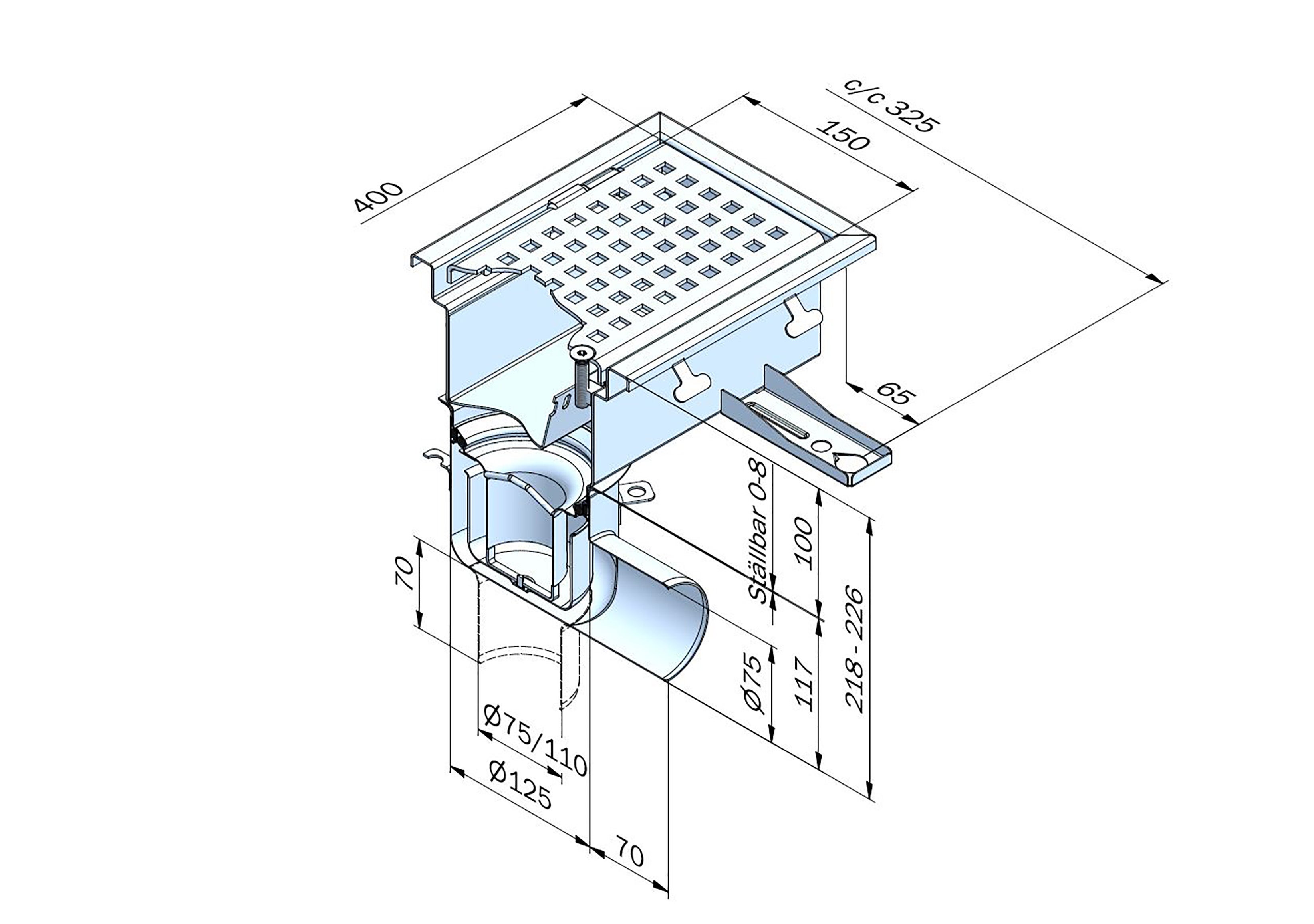

Dimension Drawing, Floor Drain FURO 158-10

S 75

Side outlet Ø75 mm

B 75

Bottom outlet Ø75 mm

B 110

Bottom outlet Ø110 mm

BVB.svg
MagiCAD Cloud

BIM and CAD files

Do you need BIM or CAD files for your project? Download the files you need by clicking the links below.

Magicad Cloud

Here you can download fixed MagiCAD models of the product. Missing the model in MagiCAD? Contact Furhoffs and we will help you!
