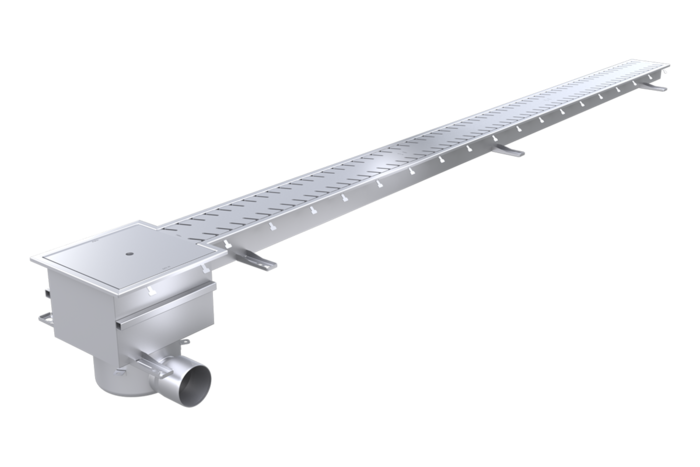

Workshop Channel FURO 150-02

Robust and durable floor channel made of acid-resistant stainless steel (EN 1.4404), designed to withstand demanding environments with heavy loads such as workshops and vehicle halls. The channel is intended for installation in concrete floors and provides a long-term, safe, and practical drainage solution for workshop and industrial environments. Supplied with large sediment trap and water trap.

Application: The FURO 150–02 workshop channel is designed to withstand demanding environments with heavy loads and traffic, making it ideal for industrial facilities, workshops, and vehicle halls. Suitable for installation in concrete floors.
Length: 500–18,300 mm, in 500 mm increments.
For lengths exceeding 4,000 mm, the channel is supplied in sections between 500–2,900 mm.
Width: Fixed width of 150 mm.
Water trap and sediment trap: The channel is supplied with a water trap and a large sediment trap.
Grating plates: Solid 10 mm thick grating plates allow easy passage of vehicles and cleaning machines.
Floor compatibility: Suitable for tiled floors, resin floors, and steel-trowelled concrete floors.
Installation: Supplied with protection against concrete spillage during casting, robust fixing lugs for height adjustment from above, and recess strips for installation in resin floors.

Technical Specification – Workshop Channel FURO 150–02
Material: Acid-resistant stainless steel EN 1.4404 (SS 2348)
Width: 150 mm
Length: Variable between 500–18,300 mm (in 500 mm increments)
Water trap: Yes, included
Sediment trap: Yes, included
Outlet: See section “Outlet and flow capacity”
Grating plates: Standard Pi, supplied in 500 or 1000 mm sections (max 11 kg each)
Sections (for lengths > 4,000 mm): Supplied in sections of 500–2,900 mm

M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.

Variants

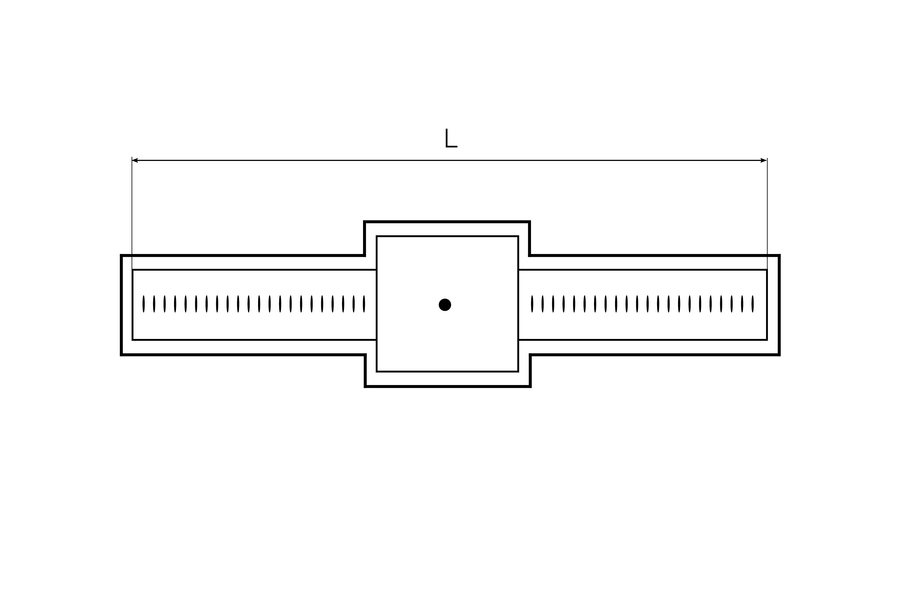

Variable length (mm):

Length (L) = 1,300–18,300 in 500 mm increments (for centrally positioned outlet)
Length (L) = 1,300–17,800 in 500 mm increments (for end-positioned or custom outlet)

Fixed width (mm): 150
Dimensions refer to the channel’s grate size.

Top section depth: 218 mm at outlet

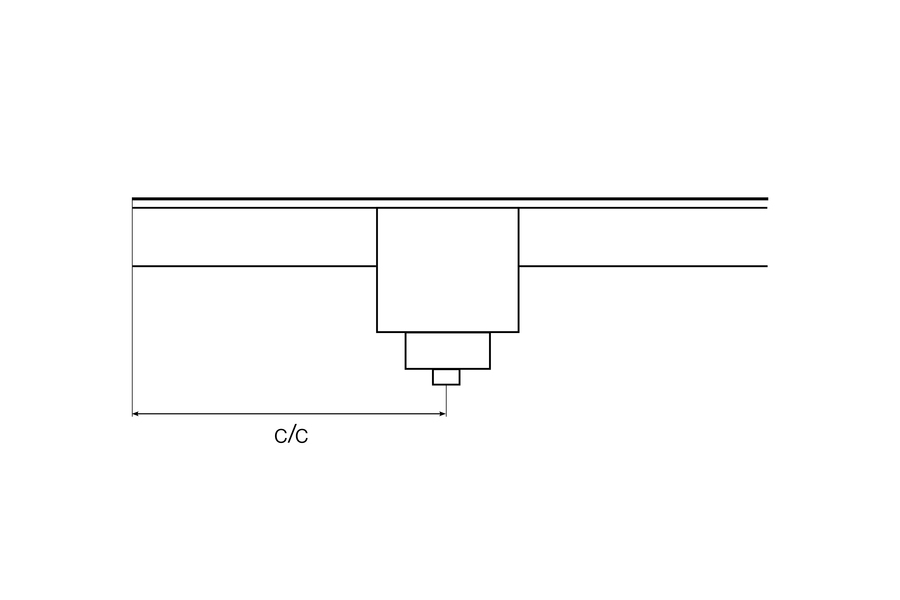

Outlet position: By default, the outlet is positioned at c/c 150 mm from the left. Custom positioning is available*.

Specify c/c distance from the left in 500 mm increments.
For custom outlet positioning, the minimum c/c distance from the left is 1150 mm.

Clinker floor K3

Floor material: Clinker in adhesives

Water proofing: Floor without waterproofing

Water proofing drain flange: None

Resin flooring

Floor material: Resin flooring

Water proofing: Compound floor

Water proofing drain flange: Recess for resin floor

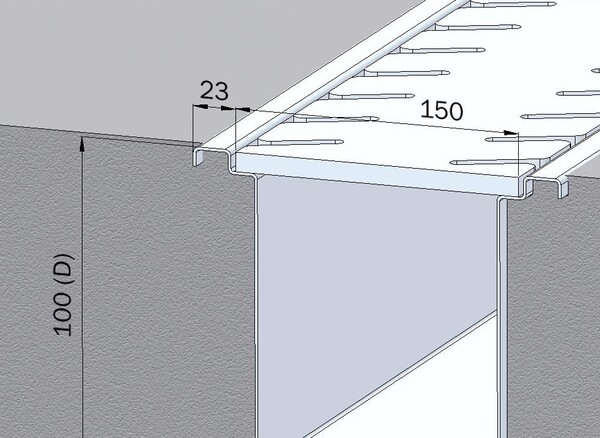

Concrete floor

Floor material: Concrete floor

Water proofing: Floor without waterproofing

Water proofing drain flange: None

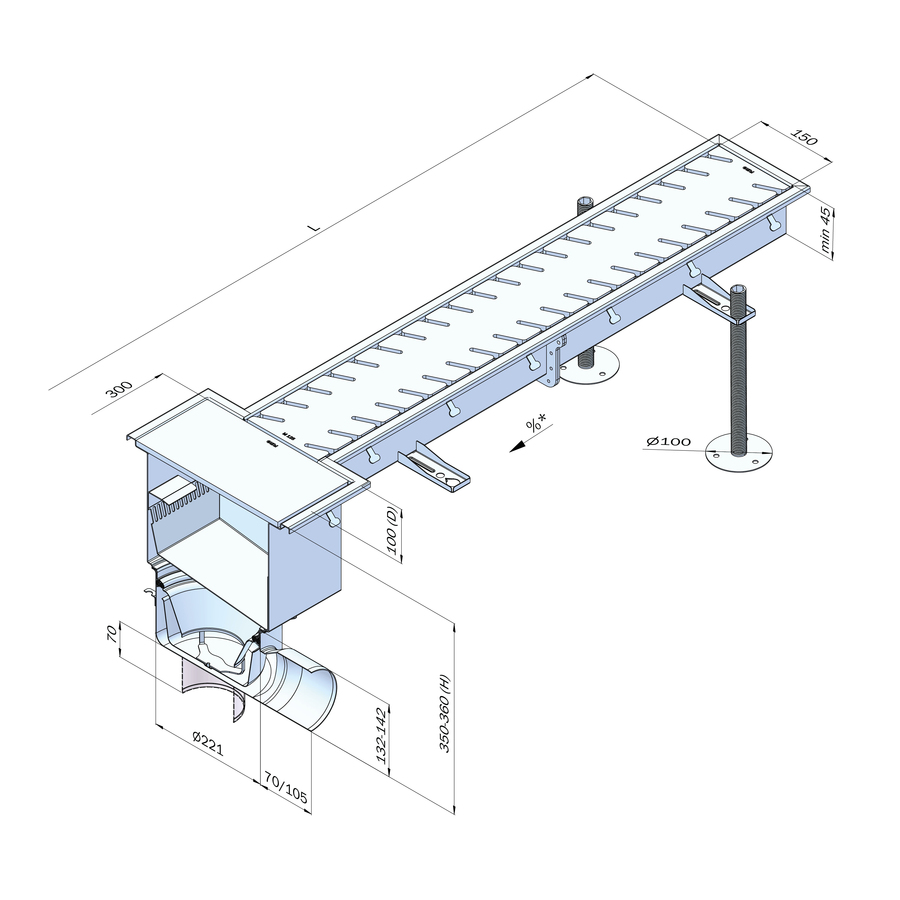

Dimensions for FURO 150–02
*The product has a slope towards the outlet.

Construction dimensions for floor channel FURO 159-02:
S1 = 423 mm
F1 = 360 mm
S2 = 551 mm (only with end-positioned outlet)
F2 = 488 mm (only with end-positioned outlet)

S 75

Side outlet Ø75 mm
Capacity > 4,0 l/s

S 110

Side outlet Ø110 mm
Capacity > 4,0 l/s

B 75

Bottom outlet Ø75 mm
Capacity > 4,0 l/s

B 110

Bottom outlet Ø110 mm
Capacity > 4,0 l/s

Trap

Part no. 220VH12

Trap with mechanical odor stop

Part no. 220VL12

Water trap, odor and backflow stop

Water trap with mechanical odor and backflow stop.

Part no. 220VLB12

Trap with shut-off function

Part no. 220VA2

Slotted cover PI

Robust and durable slotted cover designed for heavy traffic.

Load class: M125

Part no. Z-PI-150

Slotted cover, M125

Robust and durable slotted cover designed for heavy traffic.

Load class: M125

Part no. 1SLMP15101

Strainer plate, screwed in place, M125

Strainer plate with screw fastening.

Load class: M125

Part no. 1SLMPS15101

Lifting tool

Practical and ergonomic lifting hook for safe handling of grates and perforated plates. Provides a stable grip and reduces the risk of injury when lifting. Ideal for maintenance and installation.

Part no. 1LK1

Screw-fixed grate

Screw fixing is recommended for doorways and channels exposed to frequent traffic.

Part no. 1VFK-SILPLAT

Extra reinforcement strip

Extra reinforcement strip under the edge of the channel, recommended for channels exposed to heavy or frequent traffic.

Part no. Z-1EF159

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Earth braid

Earth braid for potential equalization. Compatible with any attachment point on floor drains and channels.

For more information:
Installation instructions for earth braid

Part no. 1VJF

Mounting, threaded rod

Easy adjustment from above.

Height 300 mm.
Foot diameter = 100 mm.

Part no. 1SB30

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

Height: 300 mm
Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16
