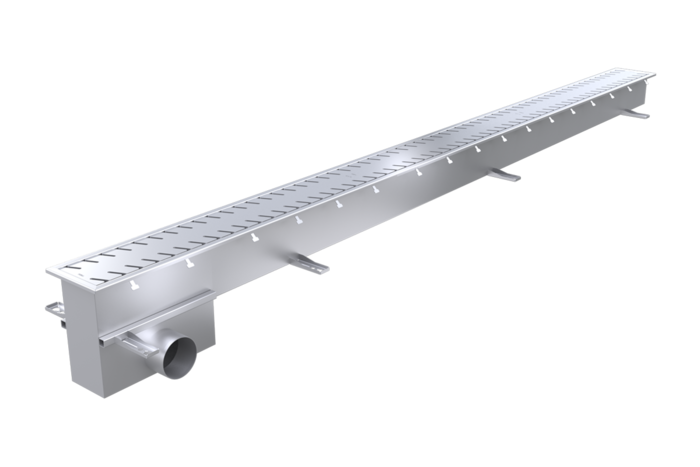

Workshop Channel FURO 150-01

• Application: The FURO 150–01 workshop channel is designed to withstand demanding environments with heavy loads and frequent traffic, making it ideal for industrial facilities, workshops, and vehicle halls. It is intended for installation in concrete floors.

• Length: 500–18,500 mm, in 500 mm increments.
  For lengths exceeding 4,000 mm, the channel is supplied in sections between 500–2,900 mm.

• Width: Fixed width of 150 mm.

• Water Trap and Sediment Trap: The channel is supplied with a sediment trap and without a water trap. It is intended to be connected to an oil separator, making it suitable for workshops and vehicle halls where oil spills or other contaminants may occur.

• Grating Plates: Solid 10 mm thick grating plates allow easy passage for vehicles as well as cleaning machines.

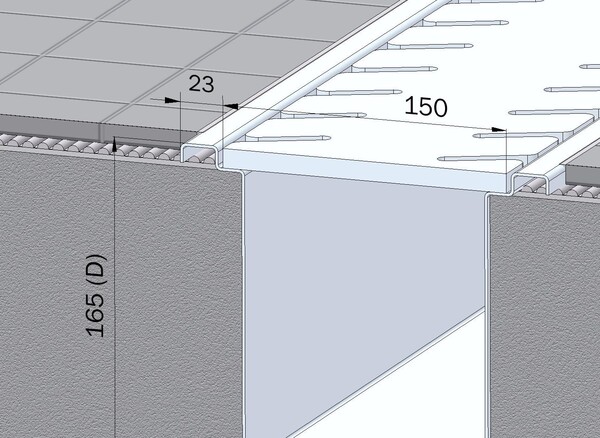

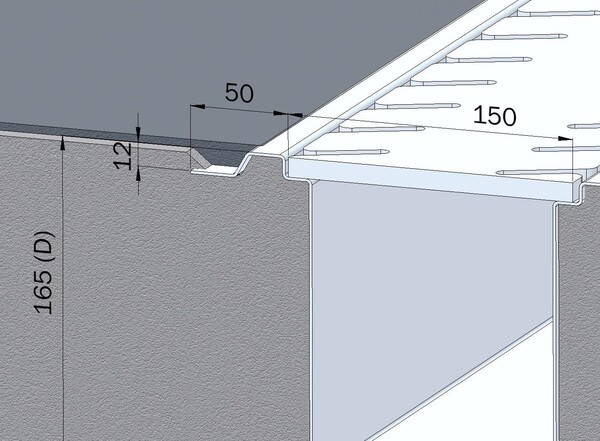

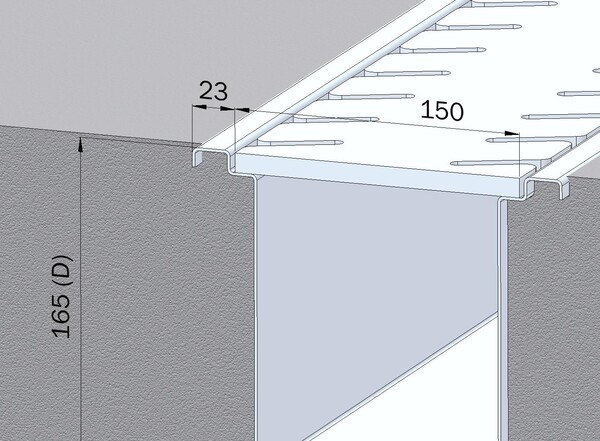

• Floor Compatibility: The channel is suitable for tiled floors, resin floors, and steel-trowelled concrete floors.

• Installation: Supplied with protection against concrete spillage during casting, robust fixing lugs for height adjustment from above, and recess strips for installation in resin floors.

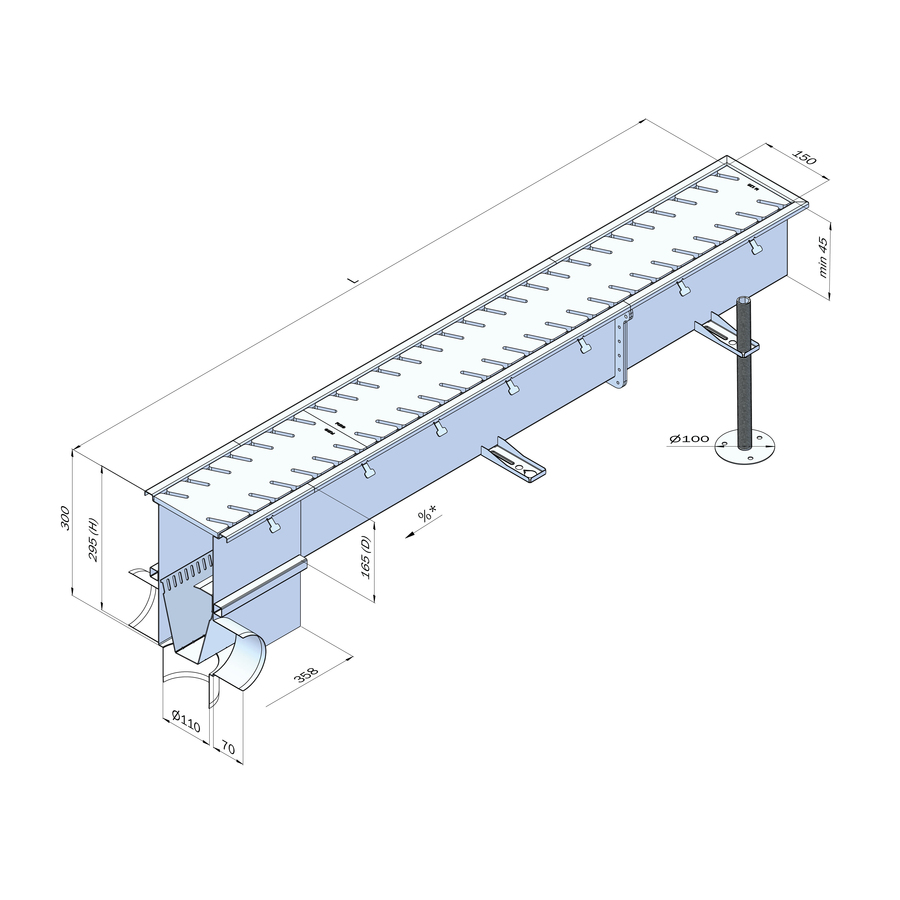

Technical Specification – Workshop Channel FURO 150–01

Material: Acid-resistant stainless steel EN 1.4404 (SS 2348)
Width: 150 mm
Length: Variable between 500–18,500 mm (in 500 mm increments)
Water Trap: No (intended for connection to oil separator)
Sediment Trap: Yes, included

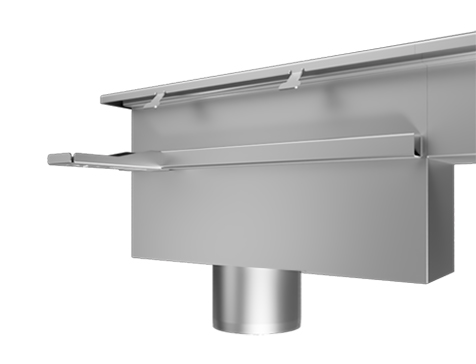

Outlet: See section “Outlet and Flow Capacity”
Grating Plates: Standard Pi, supplied in 500 or 1000 mm sections (max 11 kg each)
Floor Compatibility: Tiled floors, resin floors, steel-trowelled concrete floors
Sections (for length > 4,000 mm): The channel is supplied in sections of 500–2,900 mm

• M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.
