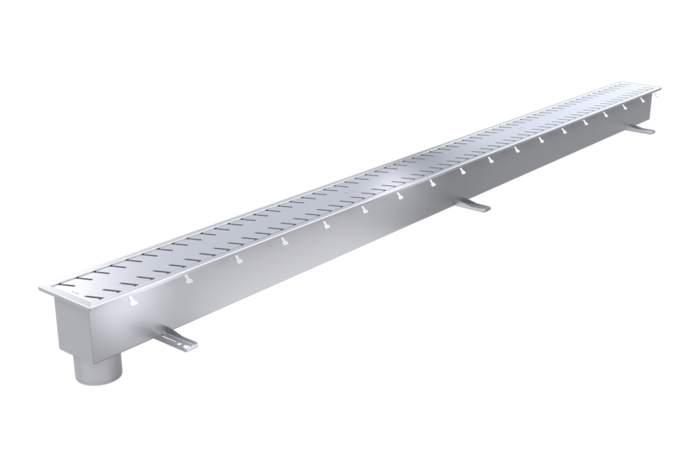

Workshop Channel FURO 150-00

• Application: The channel is designed to withstand demanding environments with heavy loads, such as workshops and vehicle halls. It is suitable for embedding in concrete floors and provides a long-term, safe, and practical drainage solution for workshop and industrial environments.

• Length: 500–20,000 mm, in 500 mm increments.
  For lengths over 4,000 mm, the channel is delivered in sections of 500–2,900 mm.

• Width: Fixed width of 150 mm.

• Water trap and sand trap: The channel is delivered without a water trap or sand trap and is intended to be connected to an oil separator, making it ideal for workshops and vehicle halls where oil or other contaminants may occur.

• Grates: Solid 10 mm thick grates allow vehicles and cleaning machines to roll over easily. The channel is also delivered with an inner strainer for the outlet.

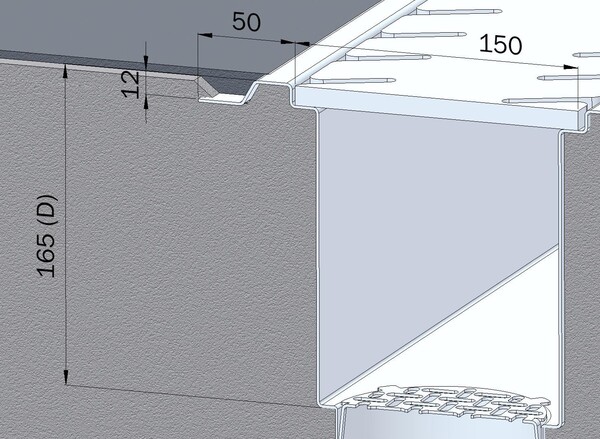

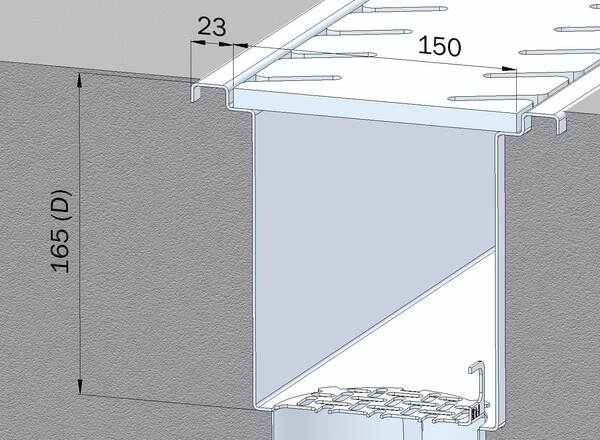

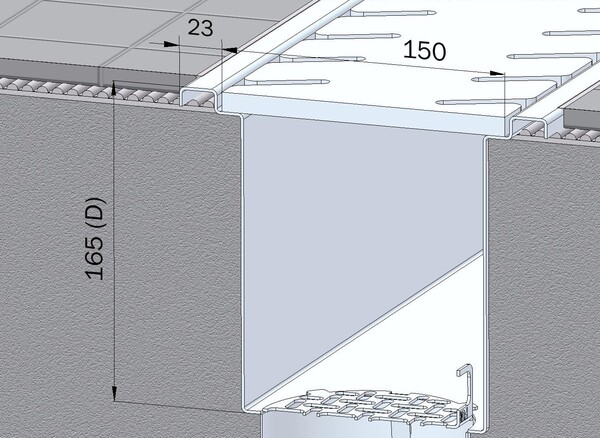

• Floor adaptation: Suitable for tile floors, screed floors, and steel-polished concrete floors.

• Installation: Delivered with concrete protection during casting, sturdy mounting brackets for height adjustment from above, and recess strips for installation in screed floors.

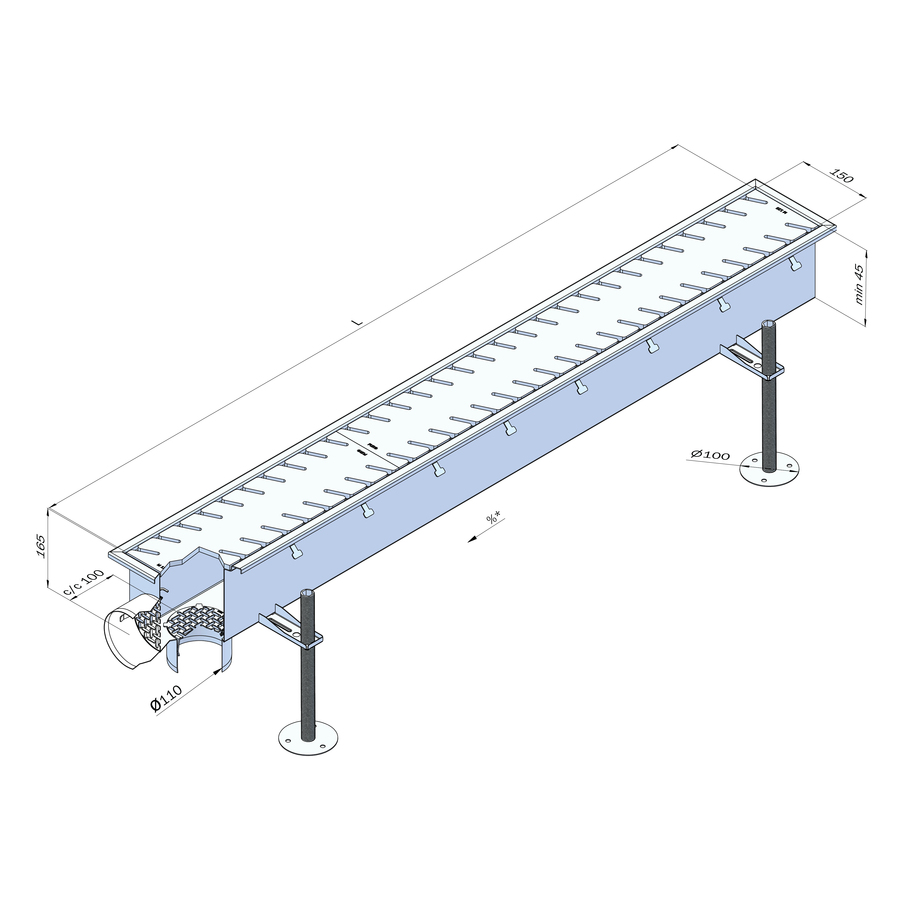

Technical Specification – Workshop Channel FURO 150–00
Material: Acid-resistant stainless steel EN 1.4404 (SS 2348)
Length (mm): Variable 500–20,000 (in 500 mm increments)
Width (mm): 150
Water trap: No (designed for connection to an oil separator)
Sand trap: No

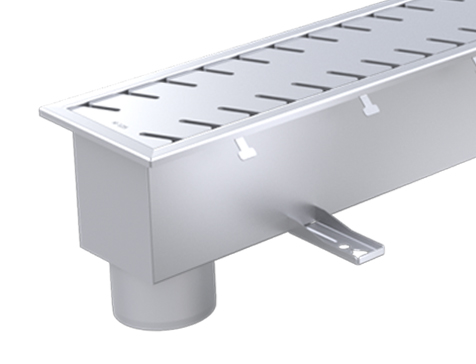

Outlet: See section “Outlets and flow capacity”
Grate: Standard Pi (delivered in 500 or 1,000 mm sections, max 11 kg per section)
Floor adaptation: Tile floors, screed floors, steel-polished concrete floors
Sections (length > 4,000 mm): Delivered in sections of 500–2,900 mm

• M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.
