Stainless steel floor drain for showers, baths, and changing rooms. Designed for long-lasting durability and easy installation in commercial and public wet areas.

Floor drain FURO 006

Small stainless steel floor drain, ideal for wet areas in public spaces such as showers and changing rooms. Available in stock for quick delivery.

The drain is ideal for wet areas in public environments such as showers and changing rooms. Adapted for various floors and construction techniques. Designed for embedding in concrete floors and installation in wooden joists.
Made of stainless steel EN 1.4301 (SS 2333), ensuring durability and a long lifespan.
Grate tops are suitable for tiled floors, resin floors, and vinyl, with tiltable and 20 mm telescopically adjustable features.
Supplied with the "Swirl" grate. More options are available as accessories. For vinyl floors, the grate is fastened with three screws.
Removable water trap with handle, making cleaning and maintenance easier.
Equipped with EPDM rubber seals according to EN 681-1 type Wc, ensuring a secure and tight installation.
Available in stock for immediate delivery.

Installation:

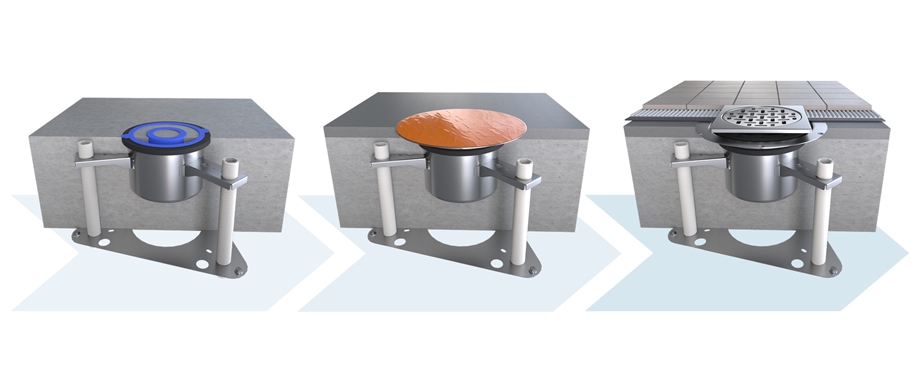

The bottom section is delivered covered to prevent concrete from seeping in during casting.
Sturdy mounting ears allow for easy height adjustment from above.

K3 For areas without traffic. Tested acc. to EN 1253-1 with 2 kN load.
L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

FURO 006 är typgodkänd TG No 1299 och uppfyller kraven i den gällande normen för golvbrunnar, SS-EN 1253-1.

The floor drain is delivered as standard, complete with a water trap and a grate top suitable for the chosen floor type.
The floor drain component and grate top can also be ordered separately. This is advantageous when the decision regarding the floor type is made late in the construction process. With the drain component installed, it can later be supplemented with the grate top suitable for the selected floor type..

Variants

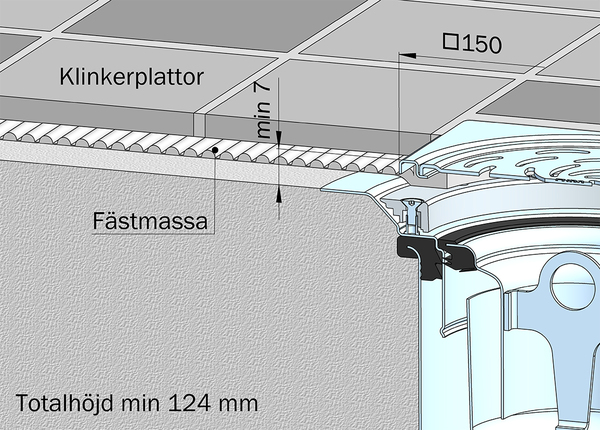

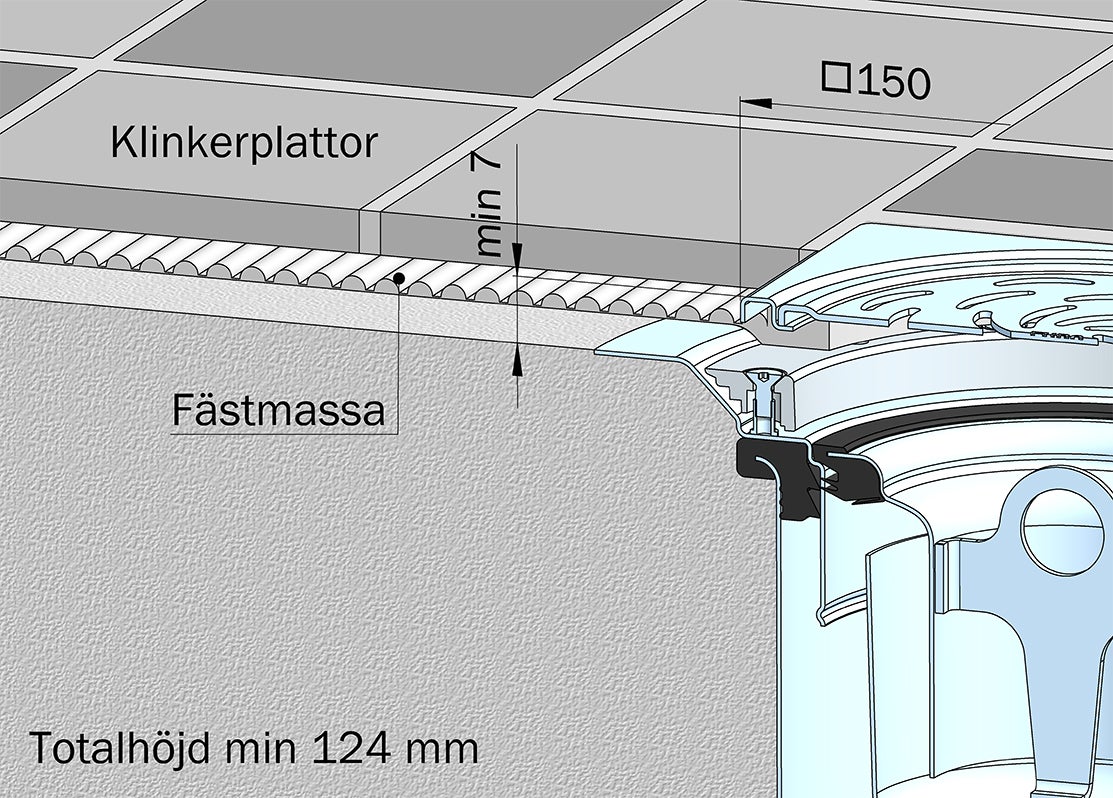

Clinker floor K3

Floor material: Clinker in adhesives

Water proofing: Floor without waterproofing

Water proofing drain flange: None

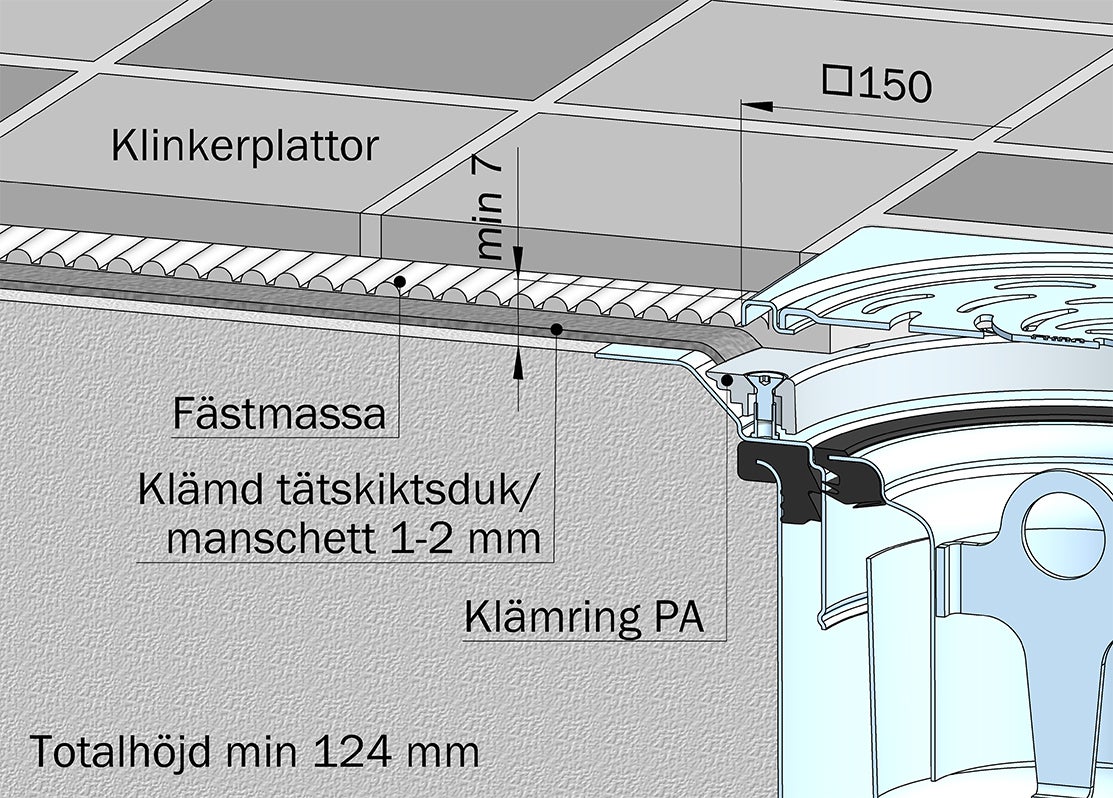

Clinker floor K5

Floor material: Clinker directly on waterproofing layer

Water proofing: Clinkers on sandwiched waterproofing membrane

Water proofing drain flange: Clamping flange

Clinker floor K5 on wooden beams

Floor material: Clinker directly on waterproofing layer

Water proofing: Clinkers on sandwiched waterproofing membrane

Water proofing drain flange: Clamping flange

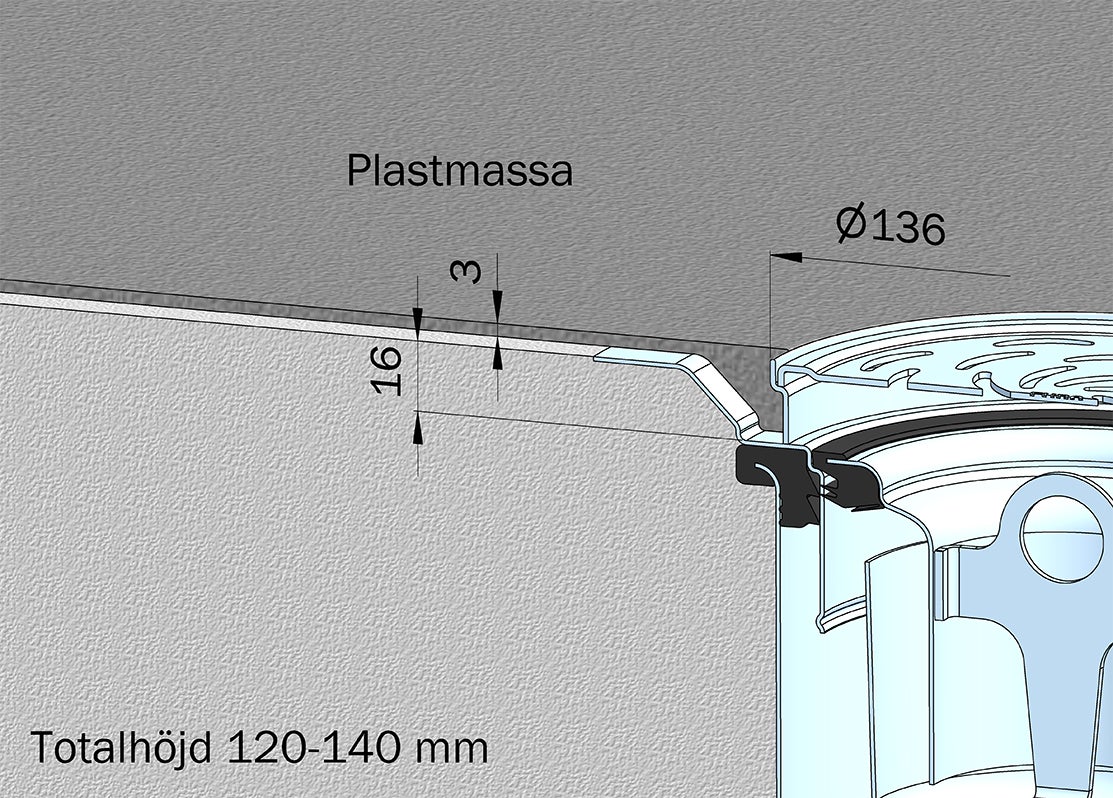

Resin flooring

Floor material: Resin flooring

Water proofing: Compound floor

Water proofing drain flange: Recess for resin floor

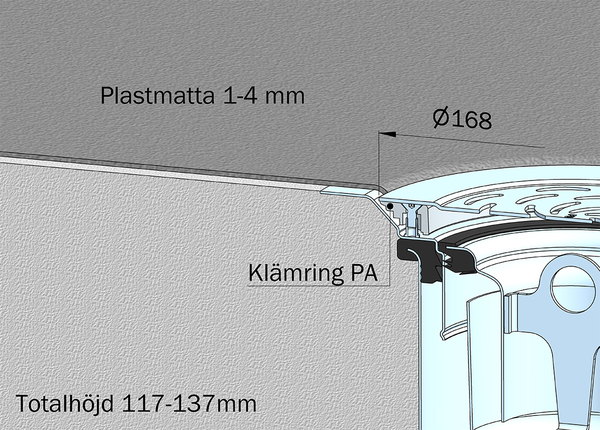

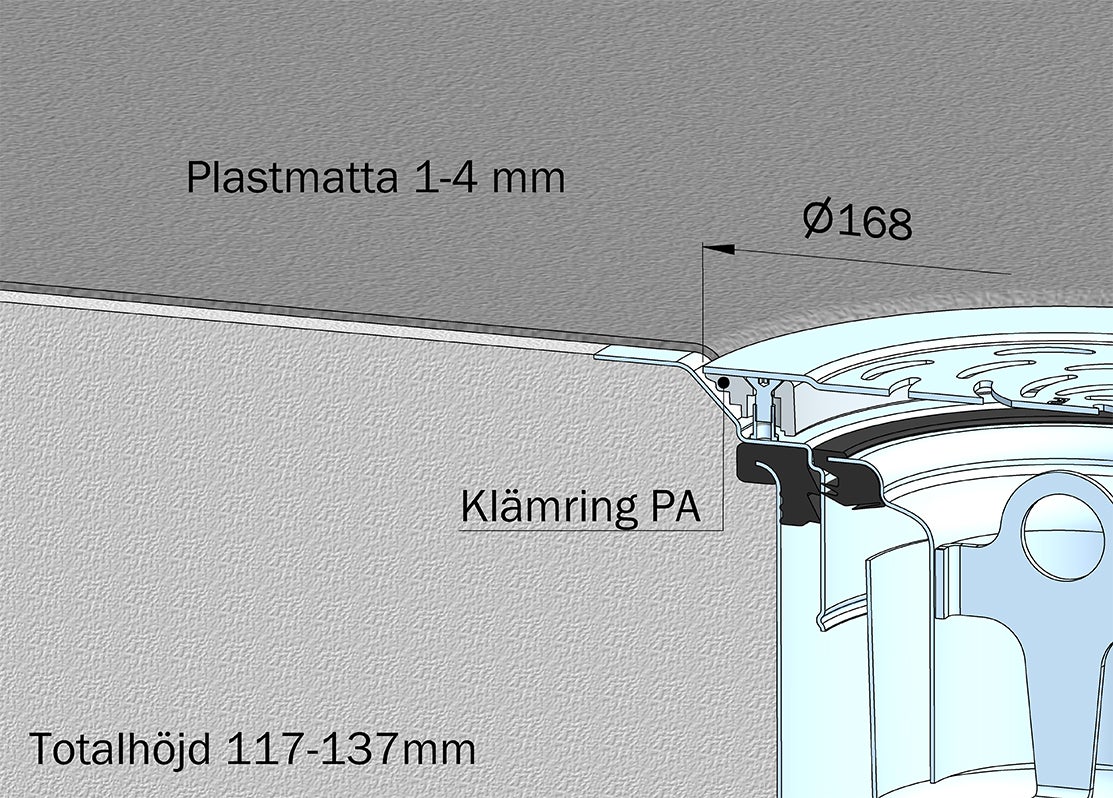

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

Dimensions for FURO 006 floor drain

For more information, see the section:
"Water flow, total height, upper part depth, and slope towards outlet".

Construction dimensions for FURO 006 floor drain:

S₁ = Ø 380 mm
F₁ = Ø 320 mm

Drains and channels always have a connection pipe and a flow path to consider. The flow path is always measured at the so-called bottom line of the pipe.

To simplify product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface down to where the water exits the product. For bottom outlets, the measurement point is where the socket begins.

The total height (H) always consists of the depth of the upper part (D) plus the outlet part of the product. If the depth of the upper part is increased, the total height also increases, affecting the product’s flow path.

Dimensions for FURO 006:
The depth of the upper part (D) varies depending on the flooring type. Below are the measurements along with any relevant notes:

Resin flooring: 21–41* mm
Vinyl flooring: 18–38* mm
Tiles K3: 25–45* mm
Tiles K5: 18–38* mm – (D) is measured to the waterproofing level
Vinyl flooring on wooden beams: 18 mm – (D) is measured to the waterproofing level
Tiles K5 on wooden beams: 18 mm – (D) is measured to the waterproofing level

* The measurement range indicates that the upper section is adjustable.

The total height (H) is as follows:

Resin flooring: 120–140 mm
Vinyl flooring: 117–137 mm
Tiles K3: 124–156 mm
Tiles K5: 124–156 mm
Vinyl flooring on wooden beams: 117 mm
Tiles K5 on wooden beams: 124 mm

Slope towards outlet:
The slope is adjusted to the product and flooring type.

S 75

Side outlet Ø75 mm

Capacity 1,1 l/s

B 75

Bottom outlet Ø75 mm

Capacity 1,4 l/s

B 110

Bottom outlet Ø110 mm

Capacity 1,2 l/s

B 75 without attachment lugs

Bottom outlet Ø75 mm

Capacity 1,7 l/s

Water trap

Trap included as standard.
Can be retrofitted.

Part no. 133VH22

Trap, mechanical odor stopper

Trap with mechanical odor stopper. Replaces standard trap.
Can be retrofitted.

Part no. 133VL12

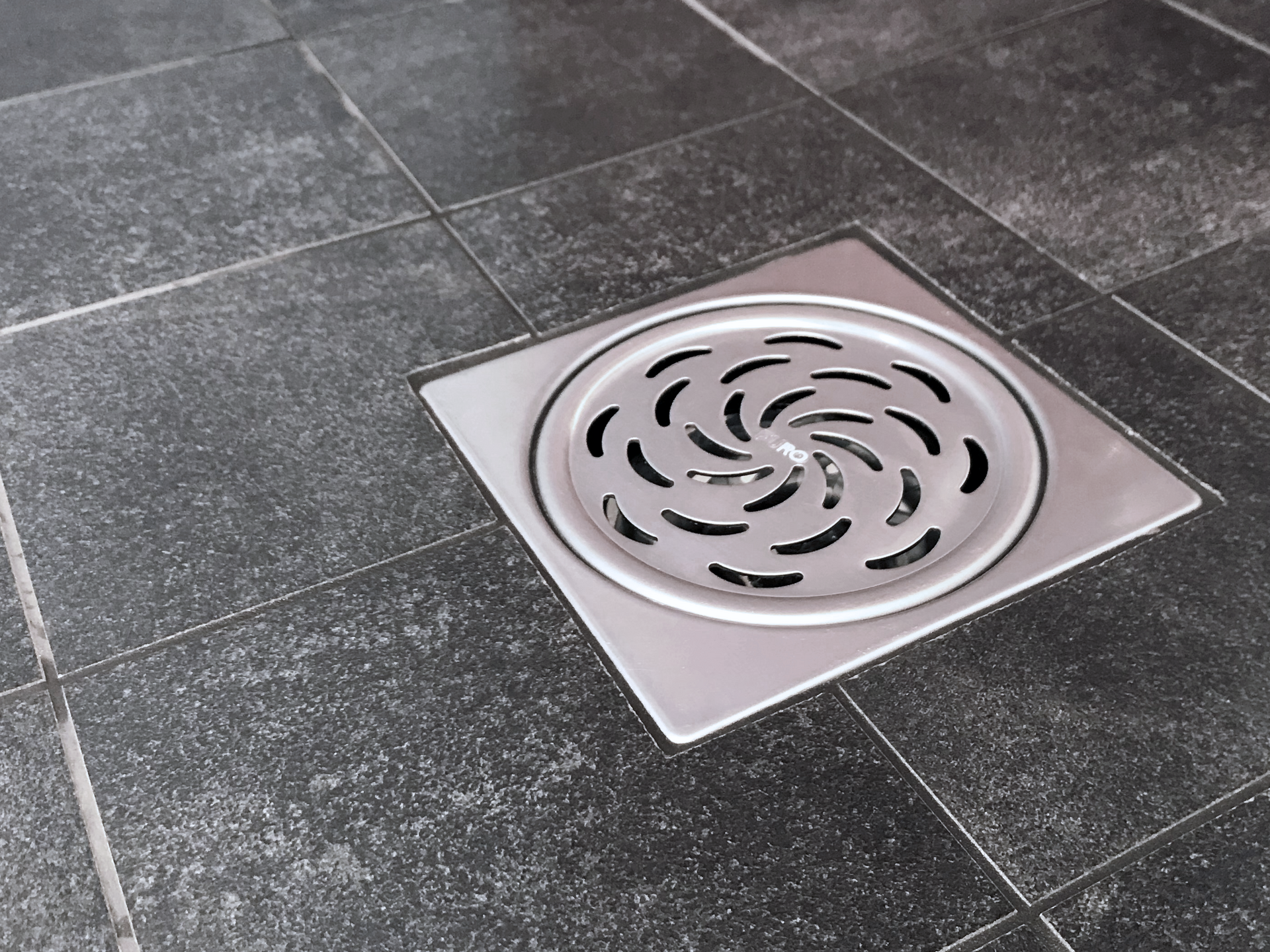

Strainer Swirl

Standard strainer for FURO 006.
Load class: K3.

Part no. 133S1K1

Strainer Classic

The strainer is included as standard.
Load class: K3.

Part no. 133SC1K1

Strainer Classic, with cutout

Strainer with cutout Ø 40 mm.
Load class: H1.5.

Part no. 133SCU1K1

Strainer Classic, acid-resistant

Strainer Classic manufactured from acid-resistant stainless steel EN 1.4404. A suitable choice for swimming pool facilities.

Load class: L15.

Part no. 133SC1L2

Swirl strainer, vinyl flooring

Standard strainer for FURO 006 for vinyl flooring.
Load class: K3.

Part no. 133S2K1

Strainer Classic, for vinyl flooring

The strainer is included as standard.
Load class: K3.

Part no. 133SC3K1

Sil Classic with cut-out, vinyl flooring

Sil Classic for vinyl flooring with a Ø 40 mm cut-out.
Load class: H1.5.

Part no. 133SCU2K1

Strainer Classic, acid-resistan for vinyl flooring

Strainer Classic for vinyl flooring, made of acid-resistant stainless steel EN 1.4404. A suitable choice for swimming pool facilities.
Load class: L15.

Part no. 133SC2L2

Cover lid

Lid for covering. The lid is not gas-tight.
Load class: L15

Part no. 133TL1L1

Lifting tool

Practical and ergonomic lifting hook for easy handling of strainers. Provides a stable grip and simplifies lifting during cleaning and maintenance. Perfect for a smooth and safe workflow.

Part no. 1LK2

Gas-tight inner cover

A cover that seals the drain and replaces the trap.

Part no. 133GIH2

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Earth braid

Earth braid for potential equalization. Compatible with any attachment point on floor drains and channels.

For more information:
Installation instructions for earth braid

Part no. 1VJF

Mounting fixture, 200 mm

Mounting fixture FUROFIX. The mounting fixture provides easy adjustment from above.
Height: 200 mm.
Use with installation accessory "Bits for mounting fixture"

Part no. 1FUROFIX200

Bits for mounting fixture

For easy adjustment of the mounting fixture.

Part no. 1BITS15

Mounting fixture, 300 mm

Mounting fixture FUROFIX. The mounting fixture provides easy adjustment from above.
Use with installation accessory "Bits for fixture."

Height: 300 mm.

Part no. 1FUROFIX300

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

Height: 300 mm
Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40

Cutting template

Cutting template for vinyl flooring and waterproof membrane.

Part no. 133SM1

Mounting plate for wooden beams

Mounting plate for floor drain, designed for wooden floor structures.

Part no. 133MP1

Documents

Installation instructions FURO 006

Construction declaration

Operation and maintenance

Immediate delivery

RSK number

Technical overview (in swedish)

Type approval fire EI60 FURO 006

Installation instructions for earth braid
