Splash guard FURO 955

Splash guard FURO 955

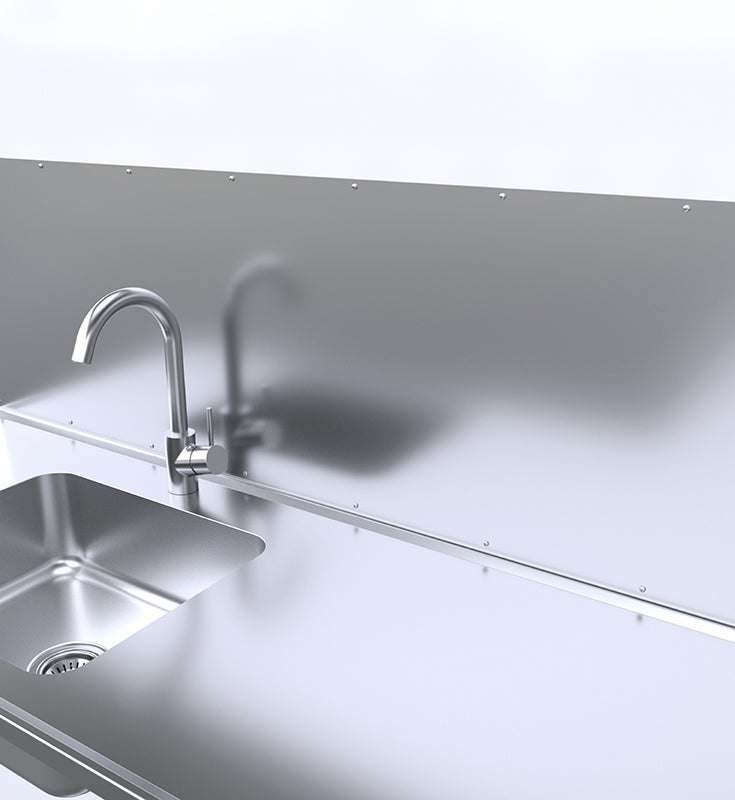

Wall-mounted splashback in stainless steel, ideal for healthcare, industry, kitchens, restaurants, and sports facilities. The splashback effectively protects wall surfaces from splashes and wear, providing an easy-to-clean and durable surface.
  • Durable and robust – Made from stainless steel EN 1.4301 or acid-resistant stainless steel EN 1.4404 with a thickness of 1.25 mm, providing high stability and reduced sensitivity to external impact.

  • Flexible dimensions – The splashback can be customized to suit different businesses and premises. The variable length depends on the steel quality selected. Read more under "Measurements".

  • Long lifespan – The splashback is robust and moisture-resistant, making it ideal for demanding environments. For extra high resistance to chemicals or if the splashback is to be placed outdoors – choose the acid-resistant stainless steel version.

  • Easy installation – Can be installed both indoors and outdoors, and is available with or without screw holes. The version without screw holes provides an even smoother, more aesthetic, and easy-to-clean surface. The splashback is glued or taped to the wall.

  • Protects wall surfaces – Reduces maintenance needs by preventing damage from splashes and stains on walls. Perfect for businesses requiring high hygiene standards and durable, easy-to-clean materials.

  • Sleek surface – Made from brushed sheet for a sleek finish.

Technical specification
Material: Stainless steel EN 1.4301 or acid-resistant stainless steel EN 1.4404
Dimensions (mm): See dimension details under "Measurements".
Execution: With or without screw holes
Mounting method: With screws or adhesive/tape
Surface treatment: Polished

For extra high resistance to chemicals or if the splashback is to be placed outdoors – choose the acid-resistant stainless steel version EN 1.4404.

Variants

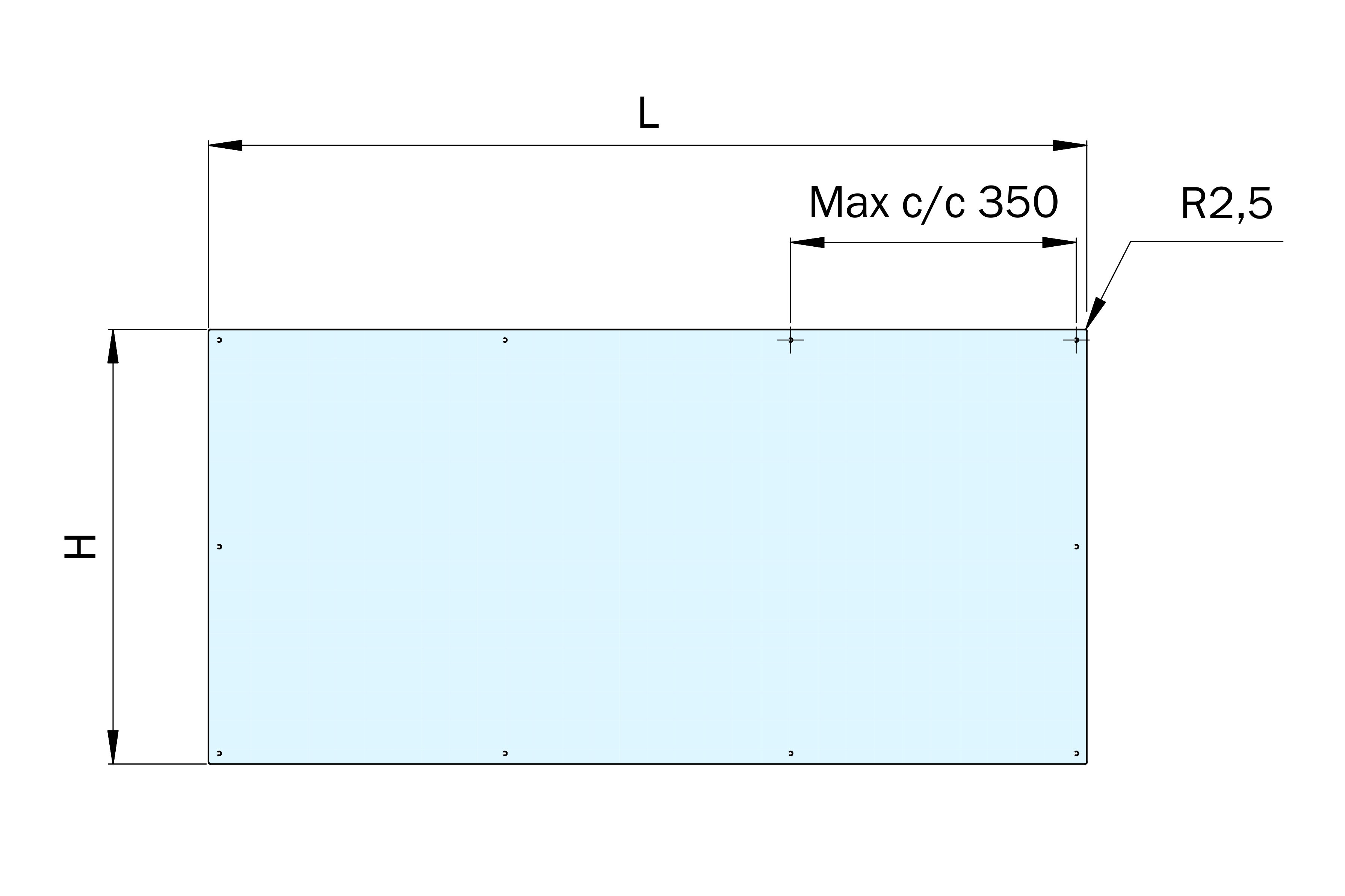

Variable dimensions (mm):
The variable length (L) is influenced by the steel grade chosen.

  • EN 1.4301 - Length (L) = 300 - 3980, in increments of 1.
  • EN 1.4404 - Length (L) = 300 - 2980, in increments of 1.

  • Height (H) = 100 - 980, in increments of 1, regardless of steel grade.

Documents

AMA
product.amaCode: NSM.111
MagiCAD Cloud

BIM and CAD files

Do you need BIM or CAD files for your project? Download the files you need by clicking the links below.

Magicad Cloud

Download MagiCAD model for this product.
